SPEC® CFP2006 Result

Hewlett-Packard Company

HP Integrity rx6600 (1.6GHz/24MB Dual-Core Intel
Itanium 2)

SPECfp®2006 = 18.1

SPECfp_base2006 = 17.3

CPU2006 license:	03	Test date:	Aug-2006
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Sep-2006
Tested by:	Hewlett-Packard Company	Software Availability:	Sep-2006

Hardware
CPU Name:	Dual-Core Intel Itanium 2 9050
CPU Characteristics:	1.6GHz/24MB, 533MHz FSB
CPU MHz:	1600
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1-4 chips
Primary Cache:	16 KB I + 16 KB D on chip per core
Secondary Cache:	1 MB I + 256 KB D on chip per core
L3 Cache:	12 MB I+D on chip per core
Other Cache:	None
Memory:	24 GB (24x1GB DIMMs)
Disk Subsystem:	73GB 10K RPM SAS
Other Hardware:	None

Software
Operating System:	HPUX11i-TCOE B.11.23.0609
Compiler:	HP C/aC++ Developer's Bundle C.11.23.12 HP Fortran90 Compiler B.11.23.32
Auto Parallel:	No
File System:	vxfs
System State:	Multi-user
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	None

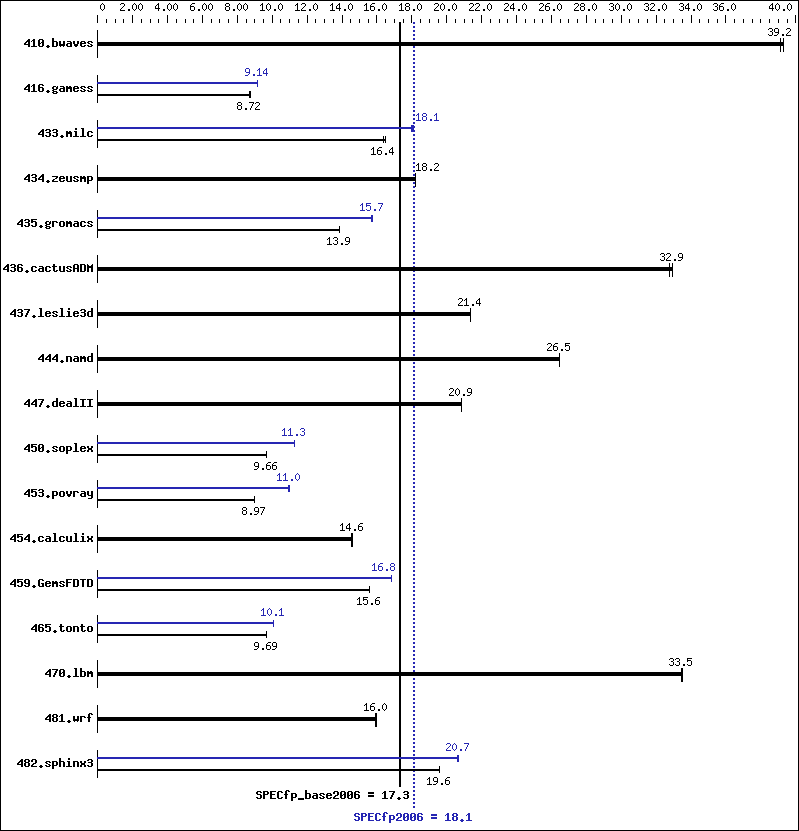

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	348	39.1	347	39.2	346	39.3	348	39.1	347	39.2	346	39.3
416.gamess	2247	8.71	2244	8.72	2241	8.74	2142	9.14	2143	9.14	2143	9.14
433.milc	560	16.4	557	16.5	560	16.4	507	18.1	508	18.1	510	18.0
434.zeusmp	499	18.2	499	18.2	499	18.2	499	18.2	499	18.2	499	18.2
435.gromacs	515	13.9	515	13.9	515	13.9	454	15.7	454	15.7	455	15.7
436.cactusADM	363	32.9	363	32.9	364	32.8	363	32.9	363	32.9	364	32.8
437.leslie3d	440	21.3	440	21.4	440	21.4	440	21.3	440	21.4	440	21.4
444.namd	303	26.5	303	26.5	303	26.5	303	26.5	303	26.5	303	26.5
447.dealII	549	20.8	549	20.9	548	20.9	549	20.8	549	20.9	548	20.9
450.soplex	863	9.66	863	9.66	863	9.67	740	11.3	740	11.3	741	11.3
453.povray	593	8.98	593	8.97	593	8.97	486	10.9	484	11.0	485	11.0
454.calculix	566	14.6	566	14.6	566	14.6	566	14.6	566	14.6	566	14.6
459.GemsFDTD	681	15.6	682	15.6	681	15.6	630	16.8	630	16.8	631	16.8
465.tonto	1017	9.68	1016	9.69	1016	9.69	975	10.1	976	10.1	979	10.1
470.lbm	411	33.4	411	33.5	410	33.5	411	33.4	411	33.5	410	33.5
481.wrf	702	15.9	700	16.0	700	16.0	702	15.9	700	16.0	700	16.0
482.sphinx3	995	19.6	994	19.6	994	19.6	942	20.7	943	20.7	946	20.6

Operating System Notes

   The system had the September 2006 HP-UX 11i v2 Technical Computing
   Operating Environment (TCOE) and compilers installed, along with
   the following patches:

   PHSS_34858  linker + fdp cumulative patch
   PHSS_34853  Math Library Cumulative Patch
   PHSS_34854  Integrity Unwind Library
   PHSS_34855  HP C Compiler (A.06.12)
   PHSS_34856  aC++ Compiler (A.06.12)
   PHSS_34857  u2comp/be/plugin library patch
   PHSS_34395  FORTRAN I/O Library [libIO77]
   PHSS_34397  FORTRAN Intrinsics [libF90 B.11.23.17]
   PHSS_34399  Fortran Product Patch, v3.1 to v3.1.1
   PHKL_34020  Perfmon enhancements and Itanium Dual-Core

   The following kernel tunables were set, in addition to the defaults
   set by the Technical Computing OE:

   dbc_max_pct=20
   dbc_min_pct=20
   maxdsiz=3221225472
   maxssiz=401604608

Platform Notes

 The "cpuconfig" EFI command was used prior to booting
   to deconfigure processors.

 Although two cores were enabled during testing,
   the SPEC CPU2006 benchmarks used only one core.

Base Compiler Invocation

Base Portability Flags

453.povray:	-DSPEC_CPU_NEED_INVHYP
454.calculix:	-DSPEC_CPU_NOZMODIFIER
481.wrf:	-DNOUNDERSCORE +noppu

Peak Compiler Invocation

C benchmarks:

/opt/ansic/bin/cc -Ae

C++ benchmarks:

/opt/aCC/bin/aCC -Aa

Fortran benchmarks:

/opt/fortran90/bin/f90

Benchmarks using both Fortran and C:

/opt/ansic/bin/cc -Ae /opt/fortran90/bin/f90

Peak Portability Flags

453.povray:	-DSPEC_CPU_NEED_INVHYP
454.calculix:	-DSPEC_CPU_NOZMODIFIER
481.wrf:	-DNOUNDERSCORE +noppu

Peak Optimization Flags

C benchmarks:

433.milc:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap -Wl,-N
470.lbm:	basepeak = yes
482.sphinx3:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap

C++ benchmarks:

444.namd:	basepeak = yes
447.dealII:	basepeak = yes
450.soplex:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap -Wl,-N
453.povray:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	+Ofaster -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Odataprefetch=direct -Wl,-N
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Odataprefetch=direct -Wl,-N
465.tonto:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Odataprefetch=direct

Benchmarks using both Fortran and C:

435.gromacs:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster(-hp_cc) +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap +Ofaster(-hp_f90)
436.cactusADM:	basepeak = yes
454.calculix:	basepeak = yes
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.06.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.06.xml.
