SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

CELSIUS M440 Pentium 4 670

SPECfp®2006 = 12.1

CPU2006 license: 22 Test date: Apr-2006
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Sep-2005
Tested by: Fujitsu Siemens Computers Software Availability: May-2006

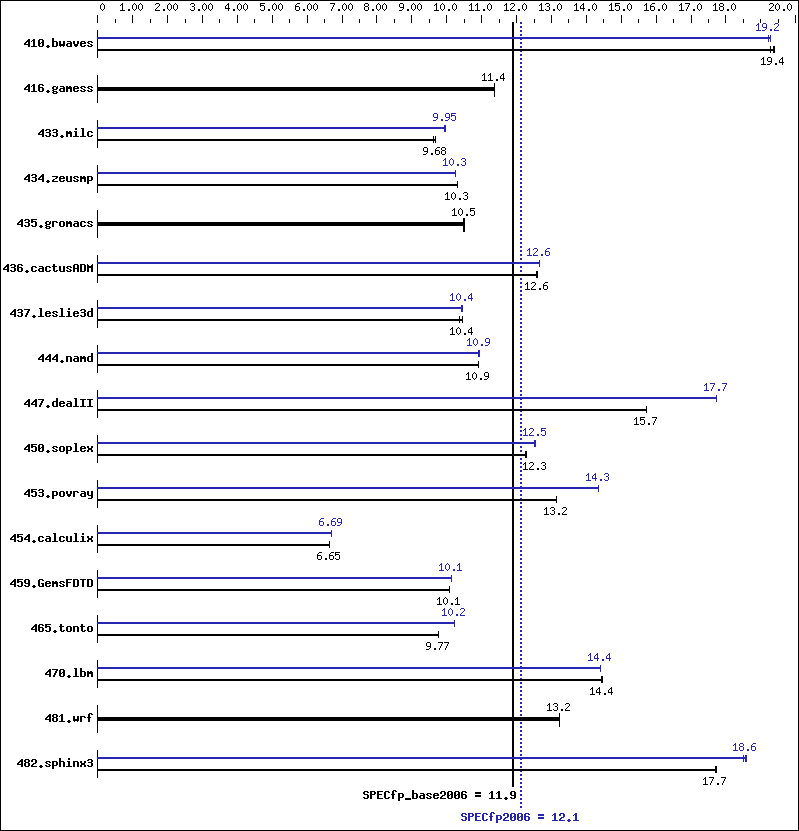

Benchmark results graph
Hardware
CPU Name: Intel Pentium 4
CPU Characteristics: Pentium 4 670
CPU MHz: 3800
FPU: Integrated
CPU(s) enabled: 1 core, 1 chip, 1 core/chip
CPU(s) orderable: 1 chip
Primary Cache: 12 K micro-ops I + 16 KB D on chip per chip
Secondary Cache: 2 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 4 GB (4 x 1 GB PC2-4200 2 rank DDR2 ECC
modules)
Disk Subsystem: Maxtor 6Y160M0 (Serial ATA 7200 RPM)
Other Hardware: None
Software
Operating System: Windows XP Professional, Service Pack 2
Compiler: Intel C++ Compiler for 32-bit applications
(Version 9.1)
Intel Fortran Compiler for 32-bit applications
(Version 9.1)
Microsoft Visual Studio .NET 2003 (libr. & linker)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library, Version 8: shlW32M.lib

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 705 19.3  702 19.4  700 19.4  705 19.3  707 19.2  707 19.2
416.gamess 1721 11.4  1721 11.4  1721 11.4  1721 11.4  1721 11.4  1721 11.4
433.milc 956 9.61 948 9.68 949 9.68 922 9.96 923 9.95 922 9.95
434.zeusmp 883 10.3  883 10.3  883 10.3  887 10.3  887 10.3  887 10.3
435.gromacs 681 10.5  680 10.5  680 10.5  681 10.5  680 10.5  680 10.5
436.cactusADM 950 12.6  949 12.6  949 12.6  944 12.7  945 12.6  945 12.6
437.leslie3d 907 10.4  901 10.4  901 10.4  899 10.5  900 10.4  901 10.4
444.namd 735 10.9  735 10.9  735 10.9  734 10.9  734 10.9  734 10.9
447.dealII 727 15.7  727 15.7  727 15.7  645 17.7  645 17.7  645 17.7
450.soplex 680 12.3  679 12.3  679 12.3  665 12.5  666 12.5  666 12.5
453.povray 405 13.2  404 13.2  404 13.2  371 14.3  371 14.3  371 14.3
454.calculix 1241 6.65 1241 6.65 1241 6.65 1233 6.69 1233 6.69 1233 6.69
459.GemsFDTD 1052 10.1  1053 10.1  1053 10.1  1045 10.1  1047 10.1  1047 10.1
465.tonto 1008 9.77 1008 9.77 1008 9.76 962 10.2  963 10.2  964 10.2
470.lbm 951 14.4  951 14.5  951 14.4  953 14.4  953 14.4  953 14.4
481.wrf 845 13.2  844 13.2  844 13.2  845 13.2  844 13.2  844 13.2
482.sphinx3 1101 17.7  1099 17.7  1101 17.7  1054 18.5  1049 18.6  1050 18.6

General Notes

	For information about Fujitsu Siemens Computers in your country please see:
	http://fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 icl

C++ benchmarks:

 icl   -Qcxx-features

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   -assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   -F950000000

C++ benchmarks:

 -fast   -F950000000

Fortran benchmarks:

 -fast   -F950000000

Benchmarks using both Fortran and C:

 -fast   -F950000000

Base Other Flags

C benchmarks:

 shlW32M.lib

C++ benchmarks:

 shlW32M.lib

Fortran benchmarks:

 shlW32M.lib

Benchmarks using both Fortran and C:

 shlW32M.lib

Peak Compiler Invocation

C benchmarks:

 icl

C++ benchmarks (except as noted below):

 icl
447.dealII:  icl   -Qcxx-features

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   -assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast

C++ benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast

Fortran benchmarks:

410.bwaves:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000
416.gamess:  basepeak = yes
434.zeusmp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast
437.leslie3d:  Same as 434.zeusmp
459.GemsFDTD:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F3200000
465.tonto:  Same as 434.zeusmp

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F32000000
454.calculix:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 shlW32M.lib

C++ benchmarks:

 shlW32M.lib

Fortran benchmarks:

 shlW32M.lib

Benchmarks using both Fortran and C:

 shlW32M.lib

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.00.xml.
