SPEC® ACCEL™ OCL Result

Copyright 2015-2021 Standard Performance Evaluation Corporation

TERATEC (Test Sponsor: Telecommunications Technology Association)

NVIDIA Tesla V100-PCIE-16GB

TNG2208

SPECaccel_ocl_base = 10.5

SPECaccel_ocl_peak = Not Run
ACCEL license: HPG068A Test date: Sep-2021
Test sponsor: Telecommunications Technology Association Hardware Availability: Oct 2017
Tested by: Telecommunications Technology Association Software Availability: Oct 2017

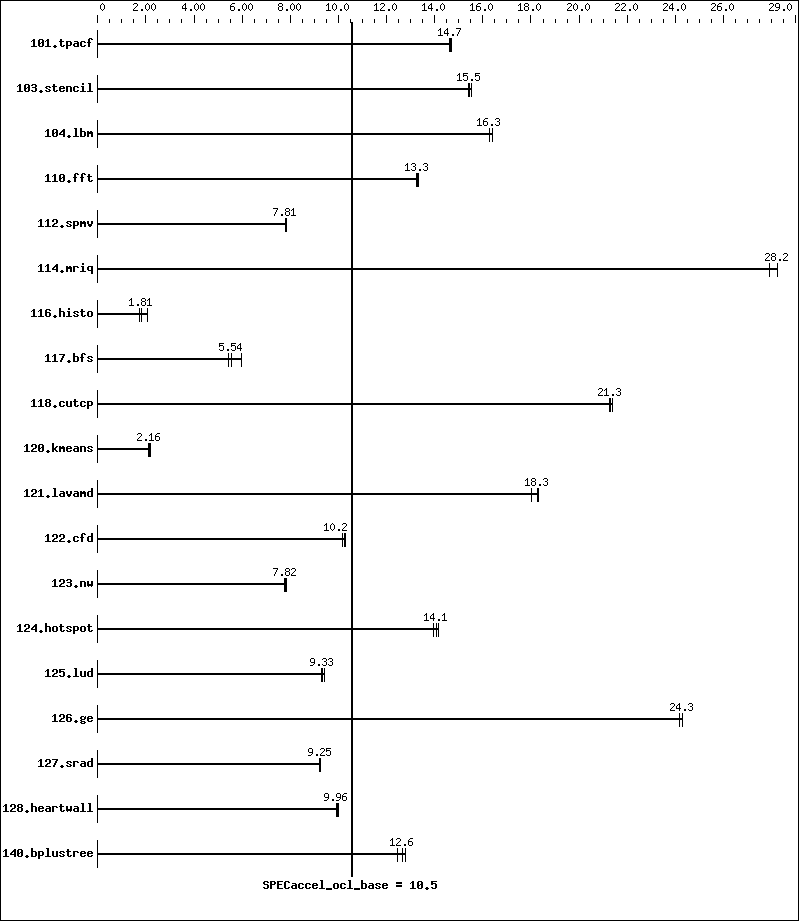

Benchmark results graph
Hardware
CPU Name: Intel Xeon Gold 6140
CPU Characteristics: Intel Turbo Boost Technology up to 3.70 GHz
CPU MHz: 2300
CPU MHz Maximum: 3700
FPU: --
CPU(s) enabled: 36 cores, 2 chips, 18 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1024 KB I+D on chip per core
L3 Cache: 24.75 MB I+D on chip per chip
Other Cache: None
Memory: 512GB (16 x 32 GB 2Rx4 PC4-2666V-R)
Disk Subsystem: 2x 300GB TOSHIBA AL14SEB030N SAS RAID1
Other Hardware: LSI MegaRAID SAS 9361-8i
Accelerator
Accel Model Name: Tesla V100-PCIE-16GB
Accel Vendor: NVIDIA
Accel Name: NVIDIA Tesla V100-PCIE-16GB
Type of Accel: GPU
Accel Connection: PCIe 3.0 16x
Does Accel Use ECC: Yes
Accel Description: NVIDIA Tesla V100-PCIE-16GB
Accel Driver: NVIDIA Driver Version 460.73.01
Software
Operating System: CentOS Linux release 7.6.1810 (Core)
Compiler: GCC version 4.8.5 20150623
File System: xfs
System State: Multi-user, run level 3
Other Software: NVIDIA CUDA 11.2

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
101.tpacf 7.32  14.6   7.28  14.7   7.30  14.7
103.stencil 8.12  15.4   8.04  15.5   8.09  15.5
104.lbm 6.84  16.4   6.88  16.3   6.88  16.3
110.fft 8.32  13.3   8.37  13.3   8.37  13.3
112.spmv 18.8   7.81  18.7   7.84  18.8   7.81
114.mriq 3.90  27.9   3.86  28.3   3.86  28.2
116.histo 63.1   1.81  65.0   1.75  54.9   2.08
117.bfs 19.5   5.99  21.1   5.54  21.5   5.45
118.cutcp 4.66  21.2   4.64  21.3   4.63  21.4
120.kmeans 45.4   2.20  46.4   2.16  47.1   2.12
121.lavamd 5.97  18.3   6.05  18.0   5.96  18.3
122.cfd 12.3   10.2   12.4   10.2   12.3   10.3
123.nw 14.7   7.83  14.7   7.82  14.8   7.76
124.hotspot 8.11  14.1   8.04  14.2   8.17  14.0
125.lud 12.6   9.42  12.8   9.31  12.8   9.33
126.ge 6.41  24.2   6.38  24.3   6.38  24.3
127.srad 12.3   9.27  12.4   9.21  12.3   9.25
128.heartwall 10.6   9.96  10.6   10.0   10.7   9.93
140.bplustree 8.44  12.8   8.54  12.6   8.68  12.4

Platform Notes

 Sysinfo program /home/tta201/accel-1.3/Docs/sysinfo
 $Rev: 6965 $ $Date:: 2015-04-21 #$ c05a7f14b1b1765e3fe1df68447e8a35
 running on tng2208 Tue Sep 28 14:41:24 2021

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/accel/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Gold 6140 CPU @ 2.30GHz
       2 "physical id"s (chips)
       36 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 18
       siblings  : 18
       physical 0: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 1: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
    cache size : 25344 KB

 From /proc/meminfo
    MemTotal:       527818016 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    centos-release: CentOS Linux release 7.6.1810 (Core)
    centos-release-upstream: Derived from Red Hat Enterprise Linux 7.6 (Source)
    os-release:
       NAME="CentOS Linux"
       VERSION="7 (Core)"
       ID="centos"
       ID_LIKE="rhel fedora"
       VERSION_ID="7"
       PRETTY_NAME="CentOS Linux 7 (Core)"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:centos:centos:7"
    redhat-release: CentOS Linux release 7.6.1810 (Core)
    system-release: CentOS Linux release 7.6.1810 (Core)
    system-release-cpe: cpe:/o:centos:centos:7

 uname -a:
    Linux tng2208 3.10.0-957.el7.x86_64 #1 SMP Thu Nov 8 23:39:32 UTC 2018 x86_64
    x86_64 x86_64 GNU/Linux

 run-level 3 Sep 28 10:56

 SPEC is set to: /home/tta201/accel-1.3
    Filesystem              Type  Size  Used Avail Use% Mounted on
    /dev/mapper/centos-home xfs   224G   11G  214G   5% /home
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.


 (End of data from sysinfo program)

General Notes

 ================================================================================================
 Spectre and Meltdown
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
 is mitigated in the system as tested and documented.

Base Runtime Environment

C benchmarks:

 OpenCL Platform: NVIDIA CUDA, OpenCL 1.2 CUDA 11.2.162   OpenCL Device #0: Tesla V100-PCIE-16GB, v 460.73.01

C++ benchmarks:

 OpenCL Platform: NVIDIA CUDA, OpenCL 1.2 CUDA 11.2.162   OpenCL Device #0: Tesla V100-PCIE-16GB, v 460.73.01

Base Compiler Invocation

C benchmarks:

 gcc

C++ benchmarks:

 g++

Base Portability Flags

116.histo:  -DSPEC_LOCAL_MEMORY_HEADROOM=2

Base Optimization Flags

C benchmarks:

 -O2   -I/usr/local/cuda/include   -L/usr/local/cuda/lib64   -lOpenCL

C++ benchmarks:

 -O2   -I/usr/local/cuda/include   -L/usr/local/cuda/lib64   -lOpenCL

The flags file that was used to format this result can be browsed at
https://www.spec.org/accel/flags/gcc_flags.20211028.html.

You can also download the XML flags source by saving the following link:
https://www.spec.org/accel/flags/gcc_flags.20211028.xml.

SPEC and SPEC ACCEL are registered trademarks or trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2015-2021 Standard Performance Evaluation Corporation
Tested with SPEC ACCEL v1.3.
Report generated on Thu Oct 28 11:03:42 2021 by SPEC ACCEL HTML formatter v1290.
Originally published on 27 October 2021.
