SPEC® ACCEL™ ACC Result

Copyright 2015-2020 Standard Performance Evaluation Corporation

Lenovo Global Technology

NVIDIA Tesla V100S-PCIE-16GB

ThinkSystem SR860 V2

SPECaccel_acc_base = 14.4

SPECaccel_acc_peak = 14.4
ACCEL license: 28 Test date: Aug-2020
Test sponsor: Lenovo Global Technology Hardware Availability: Oct-2020
Tested by: Lenovo Global Technology Software Availability: Oct-2020

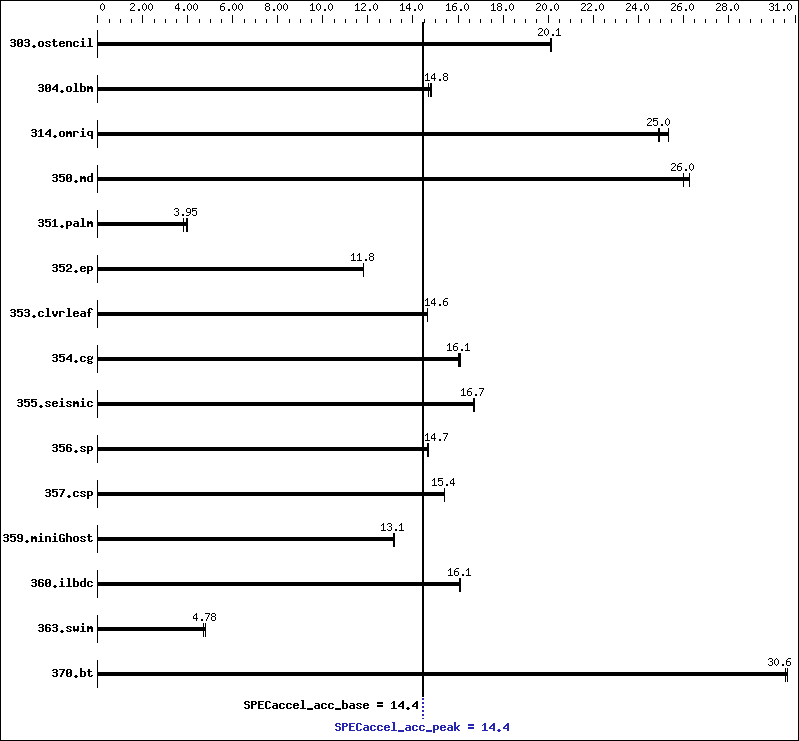

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 8380H
CPU Characteristics: Intel Turbo Boost Technology up to 4.3 GHz
CPU MHz: 2900
CPU MHz Maximum: 4300
FPU: Integrated
CPU(s) enabled: 112 cores, 4 chips, 28 cores/chip
CPU(s) orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory: 1536 GB (48 x 32 GB 2Rx8 PC4-3200AA-R)
Disk Subsystem: 1 x 1TB SATA 2.5" SSD
Other Hardware: None
Accelerator
Accel Model Name: NVIDIA Tesla V100S-PCIE-16GB
Accel Vendor: NVIDIA Corporation
Accel Name: NVIDIA Tesla V100S-PCIE-16GB
Type of Accel: GPU
Accel Connection: PCIe 3.0 16x
Does Accel Use ECC: Yes
Accel Description: NVIDIA Tesla V100S-PCIE-16GB
Accel Driver: NVIDIA UNIX x86_64 Kernel Module 450.51.06
Software
Operating System: SUSE Linux Enterprise Server 15 SP2
5.3.18-22-default
Compiler: PGI Professional Edition, Release 19.5
File System: xfs
System State: Run level 3
Other Software:

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
303.ostencil 7.20  20.1   7.21  20.1   7.22  20.1   7.20  20.1   7.21  20.1   7.22  20.1
304.olbm 30.9   14.7   30.7   14.8   30.8   14.8   30.9   14.7   30.7   14.8   30.8   14.8
314.omriq 37.7   25.4   38.3   25.0   38.4   24.9   37.7   25.4   38.3   25.0   38.4   24.9
350.md 9.60  26.3   9.69  26.0   9.68  26.0   9.60  26.3   9.69  26.0   9.68  26.0
351.palm 93.7   3.95  93.0   3.98  97.0   3.81  93.7   3.95  93.0   3.98  97.0   3.81
352.ep 44.8   11.8   44.8   11.8   44.9   11.8   44.8   11.8   44.8   11.8   44.9   11.8
353.clvrleaf 30.4   14.6   30.4   14.6   30.4   14.6   30.4   14.6   30.4   14.6   30.4   14.6
354.cg 25.4   16.0   25.4   16.1   25.4   16.1   25.4   16.0   25.4   16.1   25.4   16.1
355.seismic 22.2   16.7   22.1   16.7   22.2   16.7   22.2   16.7   22.1   16.7   22.2   16.7
356.sp 18.8   14.7   18.8   14.7   18.8   14.7   18.8   14.7   18.8   14.7   18.8   14.7
357.csp 17.5   15.4   17.5   15.4   17.6   15.4   17.5   15.4   17.5   15.4   17.6   15.4
359.miniGhost 28.1   13.1   28.0   13.2   28.1   13.1   28.1   13.1   28.0   13.2   28.1   13.1
360.ilbdc 22.9   16.0   22.8   16.1   22.8   16.1   22.9   16.0   22.8   16.1   22.8   16.1
363.swim 48.2   4.78  48.8   4.71  48.2   4.78  48.2   4.78  48.8   4.71  48.2   4.78
370.bt 7.28  30.6   7.30  30.5   7.28  30.6   7.28  30.6   7.30  30.5   7.28  30.6

Platform Notes

 Sysinfo program /home/ACCEL1.3_pgi19.1_sles151/Docs/sysinfo
 $Rev: 6965 $ $Date:: 2015-04-21 #$ c05a7f14b1b1765e3fe1df68447e8a35
 running on Narvi152 Thu Aug 20 22:09:15 2020

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/accel/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Platinum 8380H CPU @ 2.90GHz
       4 "physical id"s (chips)
       112 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 28
       siblings  : 28
       physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 2: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 3: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
    cache size : 39424 KB

 From /proc/meminfo
    MemTotal:       1584972524 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    os-release:
       NAME="SLES"
       VERSION="15-SP2"
       VERSION_ID="15.2"
       PRETTY_NAME="SUSE Linux Enterprise Server 15 SP2"
       ID="sles"
       ID_LIKE="suse"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:15:sp2"

 uname -a:
    Linux Narvi152 5.3.18-22-default #1 SMP Wed Jun 3 12:16:43 UTC 2020 (720aeba)
    x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Aug 20 21:20

 SPEC is set to: /home/ACCEL1.3_pgi19.1_sles151
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda4      xfs   490G   66G  424G  14% /home
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS Lenovo M5E103N-1.00 08/07/2020
   Memory:
    48x Samsung M393A4G43AB3-CWE 32 GB 2 rank 3200 MT/s

 (End of data from sysinfo program)

General Notes

Yes: The test sponsor attests, as of date of publication,
that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication,
that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication,
that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Base Compiler Invocation

C benchmarks:

 pgcc

Fortran benchmarks:

 pgfortran

Benchmarks using both Fortran and C:

 pgcc   pgfortran

Base Optimization Flags

C benchmarks:

 -fast   -Mfprelaxed   -acc   -ta=tesla:cc70   -ta=tesla:cuda10.1

Fortran benchmarks:

 -fast   -Mfprelaxed   -acc   -ta=tesla:cc70   -ta=tesla:cuda10.1

Benchmarks using both Fortran and C:

353.clvrleaf:  -fast   -Mfprelaxed   -acc   -ta=tesla:cc70   -ta=tesla:cuda10.1
359.miniGhost:  -fast   -Mfprelaxed   -acc   -ta=tesla:cc70   -ta=tesla:cuda10.1   -Mnomain

Peak Optimization Flags

C benchmarks:

303.ostencil:  basepeak = yes
304.olbm:  basepeak = yes
314.omriq:  basepeak = yes
352.ep:  basepeak = yes
354.cg:  basepeak = yes
357.csp:  basepeak = yes
370.bt:  basepeak = yes

Fortran benchmarks:

350.md:  basepeak = yes
351.palm:  basepeak = yes
355.seismic:  basepeak = yes
356.sp:  basepeak = yes
360.ilbdc:  basepeak = yes
363.swim:  basepeak = yes

Benchmarks using both Fortran and C:

353.clvrleaf:  basepeak = yes
359.miniGhost:  basepeak = yes

The flags file that was used to format this result can be browsed at
https://www.spec.org/accel/flags/pgi_flags.20200506.html.

You can also download the XML flags source by saving the following link:
https://www.spec.org/accel/flags/pgi_flags.20200506.xml.

SPEC and SPEC ACCEL are registered trademarks or trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2015-2020 Standard Performance Evaluation Corporation
Tested with SPEC ACCEL v1.3.
Report generated on Tue Oct 13 17:09:48 2020 by SPEC ACCEL HTML formatter v1290.
Originally published on 13 October 2020.
