SPEC® ACCEL™ ACC Result

Copyright 2015-2019 Standard Performance Evaluation Corporation

Dell (Test Sponsor: Indiana University)

Tesla V100-SMX2-16GB

PowerEdge C4140 Server

SPECaccel_acc_base = 13.3

SPECaccel_acc_peak = Not Run

ACCEL license: 3440A Test date: Aug-2019
Test sponsor: Indiana University Hardware Availability: May-2019
Tested by: Indiana University Software Availability: Apr-2019

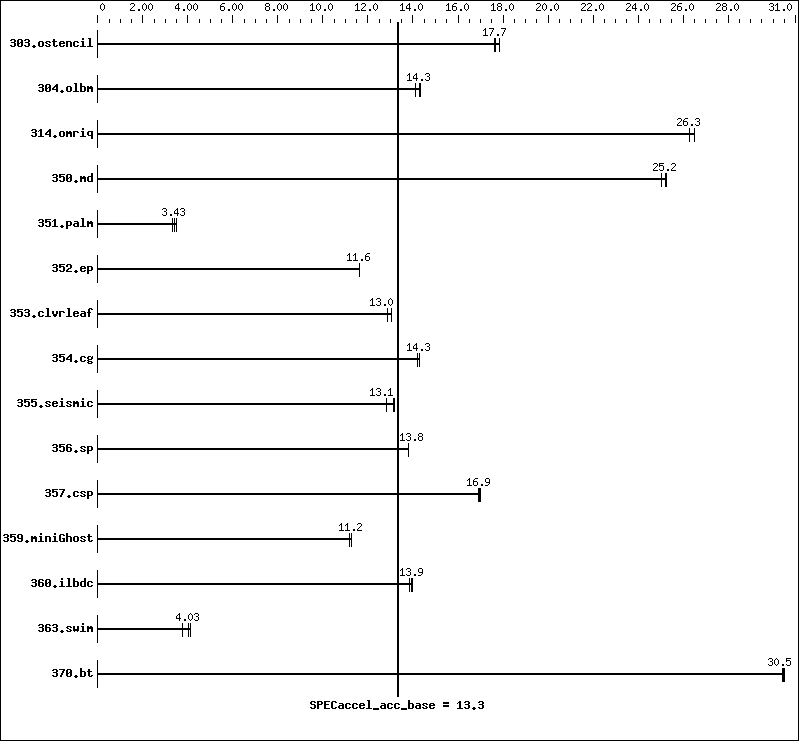

Benchmark results graph
Hardware
CPU Name: Intel Xeon Gold 6130
CPU Characteristics: Intel Turbo Boost on, SMT off
CPU MHz: 2100
CPU MHz Maximum: 3700
FPU: Integrated
CPU(s) enabled: 32 cores, 2 chips, 16 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 22 MB I+D on chip per chip
Other Cache: None
Memory: 256 GB (16 x 16 GB 2Rx8 PC4-2666V-R)
Disk Subsystem: None
Other Hardware: None
Accelerator
Accel Model Name: Tesla V100
Accel Vendor: NVIDIA Corporation
Accel Name: Tesla V100-SMX2-16GB
Type of Accel: GPU
Accel Connection: PCIe
Does Accel Use ECC: Yes
Accel Description: V100-SMX2-16GB with NVLink (Persistence Mode
enabled)
Accel Driver: NVIDIA UNIX x86_64 Kernel Module 418.67
Software
Operating System: Red Hat Enterprise Linux Server release 7.6
(Maipo) 3.10.0-957.21.3.el7.x86_64
Compiler: PGI Community Edition, Release 19.4
File System: cephfs nfsv4 (ganesha) over 100Gbits/s Ethernet
System State: Run level 3 (multi-user)
Other Software: CUDA 10.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
303.ostencil 8.21  17.7   8.13  17.8   8.24  17.6
304.olbm 32.2   14.1   31.8   14.3   31.8   14.3
314.omriq 36.1   26.5   36.4   26.3   36.3   26.3
350.md 10.0   25.2   9.98  25.3   10.1   25.0
351.palm 106     3.48  108     3.43  111     3.32
352.ep 45.5   11.6   45.5   11.6   45.5   11.6
353.clvrleaf 34.1   13.1   34.1   13.0   34.5   12.9
354.cg 28.7   14.2   28.5   14.3   28.5   14.3
355.seismic 28.0   13.2   28.2   13.1   28.9   12.8
356.sp 20.0   13.8   20.0   13.8   20.0   13.8
357.csp 16.0   16.9   15.9   16.9   15.9   17.0
359.miniGhost 33.0   11.2   32.8   11.3   32.8   11.2
360.ilbdc 26.5   13.8   26.2   14.0   26.4   13.9
363.swim 55.6   4.13  57.1   4.03  61.5   3.74
370.bt 7.33  30.4   7.31  30.5   7.32  30.5

Platform Notes

 Sysinfo program /home/lijunj/junjie_benchmarks/spec/accel-1.2-bm/Docs/sysinfo
 $Rev: 6965 $ $Date:: 2015-04-21 #$ c05a7f14b1b1765e3fe1df68447e8a35
 running on r08g05 Wed Aug  7 02:05:24 2019

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/accel/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Gold 6130 CPU @ 2.10GHz
       2 "physical id"s (chips)
       32 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 16
       siblings  : 16
       physical 0: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
       physical 1: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
    cache size : 22528 KB

 From /proc/meminfo
    MemTotal:       196261708 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    os-release:
       NAME="Red Hat Enterprise Linux Server"
       VERSION="7.6 (Maipo)"
       ID="rhel"
       ID_LIKE="fedora"
       VARIANT="Server"
       VARIANT_ID="server"
       VERSION_ID="7.6"
       PRETTY_NAME="Red Hat Enterprise Linux Server 7.6 (Maipo)"
    redhat-release: Red Hat Enterprise Linux Server release 7.6 (Maipo)
    system-release: Red Hat Enterprise Linux Server release 7.6 (Maipo)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:7.6:ga:server

 uname -a:
    Linux r08g05 3.10.0-957.21.3.el7.x86_64 #1 SMP Fri Jun 14 02:54:29 EDT 2019
    x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jul 15 10:51

 SPEC is set to: /home/lijunj/junjie_benchmarks/spec/accel-1.2-bm
    Filesystem                                                            Type
    Size  Used Avail Use% Mounted on
    172.16.129.177:/volumes/_nogroup/24ec4401-f96d-40a5-99a5-e96f73257d2f nfs4
    128G  102G   27G  79% /mnt
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

Information from pgaccelinfo:
CUDA Driver Version:           10010
NVRM version:                  NVIDIA UNIX x86_64 Kernel Module  418.67
Device Number:                 0
Device Name:                   Tesla V100-SXM2-16GB
Device Revision Number:        7.0
Global Memory Size:            16914055168
Number of Multiprocessors:     80
Concurrent Copy and Execution: Yes
Total Constant Memory:         65536
Total Shared Memory per Block: 49152
Registers per Block:           65536
Warp Size:                     32
Maximum Threads per Block:     1024
Maximum Block Dimensions:      1024, 1024, 64
Maximum Grid Dimensions:       2147483647 x 65535 x 65535
Maximum Memory Pitch:          2147483647B
Texture Alignment:             512B
Clock Rate:                    1530 MHz
Execution Timeout:             No
Integrated Device:             No
Can Map Host Memory:           Yes
Compute Mode:                  default
Concurrent Kernels:            Yes
ECC Enabled:                   No
Memory Clock Rate:             877 MHz
Memory Bus Width:              4096 bits
L2 Cache Size:                 6291456 bytes
Max Threads Per SMP:           2048
Async Engines:                 5
Unified Addressing:            Yes
Managed Memory:                Yes
Concurrent Managed Memory:     Yes
Preemption Supported:          Yes
Cooperative Launch:            Yes
  Multi-Device:                Yes
PGI Default Target:            -ta=tesla:cc70

General Notes

 Four V100-SMX2-16GB GPUs were installed on the system,
 three of them were idle while only one is active for running SPEC Accel.

 CPUs and GPUs are connected via PCIe, while the four GPUs are connected
 through NVLink.  The NVlink connection is not used in this test.

 Stacksize set to 'unlimited':
      ulimit -s unlimited

 Spectre & Meltdown:
   Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
   is mitigated in the system as tested and documented.
   Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
   is mitigated in the system as tested and documented.
   Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
   is mitigated in the system as tested and documented.

Base Compiler Invocation

C benchmarks:

 pgcc

Fortran benchmarks:

 pgfortran

Benchmarks using both Fortran and C:

 pgcc   pgfortran

Base Optimization Flags

C benchmarks:

 -fast   -Mfprelaxed   -acc   -ta=tesla:cc70   -ta=tesla:cuda10.1

Fortran benchmarks:

 -fast   -Mfprelaxed   -acc   -ta=tesla:cc70   -ta=tesla:cuda10.1

Benchmarks using both Fortran and C:

353.clvrleaf:  -fast   -Mfprelaxed   -acc   -ta=tesla:cc70   -ta=tesla:cuda10.1
359.miniGhost:  -fast   -Mfprelaxed   -acc   -ta=tesla:cc70   -ta=tesla:cuda10.1   -Mnomain

The flags file that was used to format this result can be browsed at
https://www.spec.org/accel/flags/pgi2019_flags.html.

You can also download the XML flags source by saving the following link:
https://www.spec.org/accel/flags/pgi2019_flags.xml.
