Harsper Co.,LTD NVIDIA GeForce GTX 1080 MG140-G1 |
SPECaccel_ocl_base = 4.33 |
|
SPECaccel_ocl_peak = Not Run |
| ACCEL license: | HPG068A | Test date: | May-2019 |
|---|---|---|---|
| Test sponsor: | Harsper Co.,LTD | Hardware Availability: | Nov 2018 |
| Tested by: | Telecommunications Technology Association | Software Availability: | Nov 2018 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon Silver 4110 |
| CPU Characteristics: | Intel Turbo Boost Technology off. Hyper-threading on. |
| CPU MHz: | 2100 |
| CPU MHz Maximum: | 2100 |
| FPU: | integrated |
| CPU(s) enabled: | 8 cores, 1 chip, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | 11 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 64 GB (4 x 16 GB 2Rx8 PC4-2666V-R) |
| Disk Subsystem: | 1 x 250GB WDC WDS250G2B0B SATA 2 x 250GB SAMSUNG MZ7WD480HAGM-00003 RAID1 |
| Other Hardware: | -- |
| Accelerator | |
|---|---|
| Accel Model Name: | GeForce GTX 1080 |
| Accel Vendor: | NVIDIA |
| Accel Name: | NVIDIA GeForce GTX 1080 |
| Type of Accel: | GPU |
| Accel Connection: | PCIe 3.0 16x |
| Does Accel Use ECC: | No |
| Accel Description: | NVIDIA GeForce GTX 1080, 2560 CUDA cores, 1556 MHz 8.0 GiB GDDR5 RAM |
| Accel Driver: | NVIDIA Driver Version 418.56 |
| Software | |
|---|---|
| Operating System: | CentOS Linux release 7.6.1810 (Core) 3.10.0-957.el7.x86_64 |
| Compiler: | GCC version 4.8.5 20150623 |
| File System: | xfs |
| System State: | Multi-user, run level 3 |
| Other Software: | NVIDIA CUDA 10.1 |

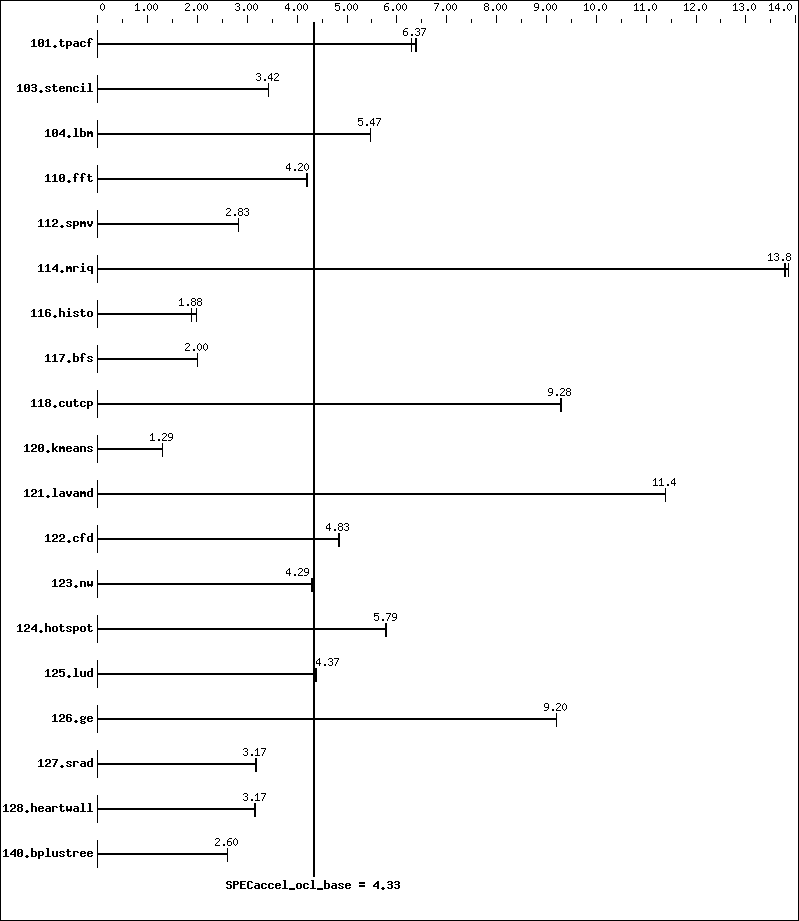

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 101.tpacf | 17.0 | 6.30 | 16.8 | 6.37 | 16.7 | 6.39 | ||||||
| 103.stencil | 36.5 | 3.42 | 36.5 | 3.42 | 36.5 | 3.42 | ||||||
| 104.lbm | 20.5 | 5.47 | 20.5 | 5.47 | 20.5 | 5.46 | ||||||
| 110.fft | 26.5 | 4.19 | 26.4 | 4.20 | 26.4 | 4.21 | ||||||
| 112.spmv | 52.0 | 2.83 | 52.0 | 2.83 | 52.0 | 2.83 | ||||||
| 114.mriq | 7.91 | 13.8 | 7.90 | 13.8 | 7.87 | 13.9 | ||||||
| 116.histo | 60.8 | 1.88 | 60.8 | 1.87 | 57.6 | 1.98 | ||||||
| 117.bfs | 58.4 | 2.00 | 58.5 | 2.00 | 58.4 | 2.00 | ||||||
| 118.cutcp | 10.7 | 9.27 | 10.7 | 9.28 | 10.6 | 9.31 | ||||||
| 120.kmeans | 77.5 | 1.29 | 77.6 | 1.29 | 77.2 | 1.29 | ||||||
| 121.lavamd | 9.57 | 11.4 | 9.58 | 11.4 | 9.58 | 11.4 | ||||||
| 122.cfd | 26.0 | 4.84 | 26.1 | 4.83 | 26.1 | 4.83 | ||||||
| 123.nw | 26.8 | 4.29 | 26.8 | 4.29 | 26.7 | 4.30 | ||||||
| 124.hotspot | 19.7 | 5.80 | 19.8 | 5.77 | 19.7 | 5.79 | ||||||
| 125.lud | 27.2 | 4.38 | 27.3 | 4.37 | 27.2 | 4.37 | ||||||
| 126.ge | 16.8 | 9.20 | 16.8 | 9.21 | 16.9 | 9.20 | ||||||
| 127.srad | 35.9 | 3.18 | 36.0 | 3.17 | 35.9 | 3.17 | ||||||
| 128.heartwall | 33.4 | 3.17 | 33.7 | 3.15 | 33.5 | 3.17 | ||||||
| 140.bplustree | 41.4 | 2.61 | 41.6 | 2.60 | 41.5 | 2.60 | ||||||
Platform Notes
Sysinfo program /HPG/accel/Docs/sysinfo $Rev: 6965 $ $Date:: 2015-04-21 #$ c05a7f14b1b1765e3fe1df68447e8a35 running on harsper Mon May 27 14:51:17 2019 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/accel/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) Silver 4110 CPU @ 2.10GHz 1 "physical id"s (chips) 16 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 8 siblings : 16 physical 0: cores 0 1 2 3 4 5 6 7 cache size : 11264 KB From /proc/meminfo MemTotal: 65398344 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* centos-release: CentOS Linux release 7.6.1810 (Core) centos-release-upstream: Derived from Red Hat Enterprise Linux 7.6 (Source) os-release: NAME="CentOS Linux" VERSION="7 (Core)" ID="centos" ID_LIKE="rhel fedora" VERSION_ID="7" PRETTY_NAME="CentOS Linux 7 (Core)" ANSI_COLOR="0;31" CPE_NAME="cpe:/o:centos:centos:7" redhat-release: CentOS Linux release 7.6.1810 (Core) system-release: CentOS Linux release 7.6.1810 (Core) system-release-cpe: cpe:/o:centos:centos:7 uname -a: Linux harsper 3.10.0-957.el7.x86_64 #1 SMP Thu Nov 8 23:39:32 UTC 2018 x86_64 x86_64 x86_64 GNU/Linux run-level 3 May 14 12:57 SPEC is set to: /HPG/accel Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/centos-root xfs 50G 24G 27G 47% / Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS American Megatrends Inc. 2.0b 02/26/2018 Memory: 2x NO DIMM NO DIMM 4x Samsung M393A2K43BB1-CTD 16 GB 2 rank 2666 MT/s, configured at 2400 MT/s (End of data from sysinfo program)
Base Runtime Environment
C benchmarks:
| OpenCL Platform: NVIDIA CUDA, OpenCL 1.2 CUDA 10.1.133 OpenCL Device #0: GeForce GTX 1080, v 418.56 |
C++ benchmarks:
| OpenCL Platform: NVIDIA CUDA, OpenCL 1.2 CUDA 10.1.133 OpenCL Device #0: GeForce GTX 1080, v 418.56 |
