Lenovo Global Technology NVIDIA Tesla V100-PCIE-16GB ThinkSystem SR650 |
SPECaccel_acc_base = 12.2 |
|
SPECaccel_acc_peak = Not Run |
| ACCEL license: | 28 | Test date: | Mar-2019 |
|---|---|---|---|
| Test sponsor: | Lenovo Global Technology | Hardware Availability: | Apr-2019 |
| Tested by: | Lenovo Global Technology | Software Availability: | Apr-2019 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon Gold 6240 |
| CPU Characteristics: | |
| CPU MHz: | 2600 |
| CPU MHz Maximum: | 3900 |
| FPU: | Integrated |
| CPU(s) enabled: | 36 cores, 2 chips, 18 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | 22 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 768 GB (24 x 32 GB 2Rx4 PC4-2933Y-R) |
| Disk Subsystem: | 1 X Lenovo 1 TB SAS 2.5" HDD (JBOD) |
| Other Hardware: | None |
| Accelerator | |
|---|---|
| Accel Model Name: | Tesla V100 |
| Accel Vendor: | NVIDIA Corporation |
| Accel Name: | NVIDIA Tesla V100-PCIE-16GB |
| Type of Accel: | GPU |
| Accel Connection: | PCIe 3.0 x16 |
| Does Accel Use ECC: | Yes |
| Accel Description: | NVIDIA V100-PCIE-16GB |
| Accel Driver: | NVIDIA UNIX x86_64 Kernel Module 396.26 |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 7.6 (Maipo) 3.10.0-957.el7.x86_64 |
| Compiler: | PGI Professional Edition, Release 18.7 LLVM |
| File System: | xfs |
| System State: | Run level 3 (Multi User) |
| Other Software: | None |

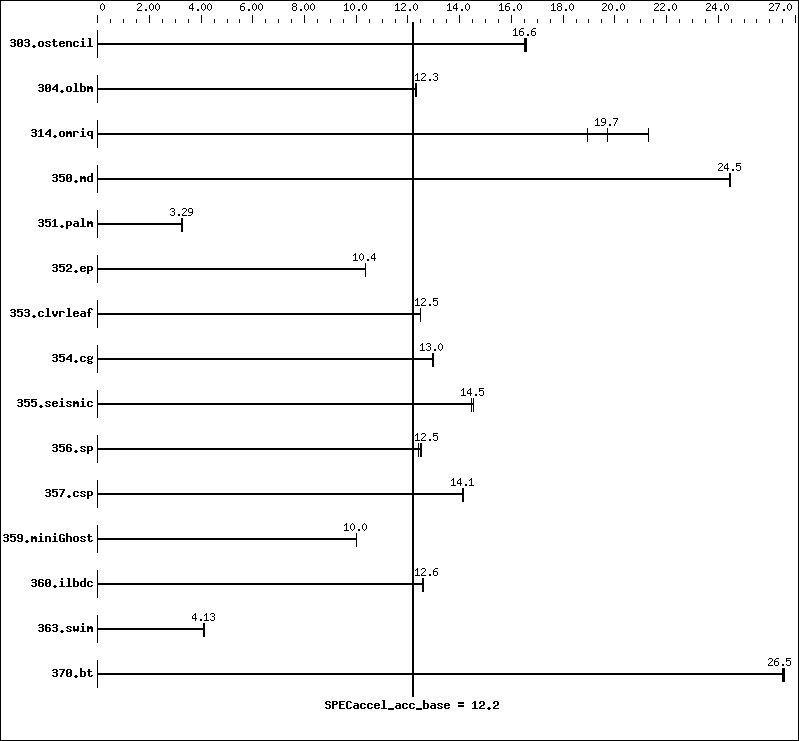

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 303.ostencil | 8.75 | 16.6 | 8.78 | 16.5 | 8.75 | 16.6 | ||||||
| 304.olbm | 37.0 | 12.3 | 37.0 | 12.3 | 36.9 | 12.3 | ||||||
| 314.omriq | 44.8 | 21.3 | 50.4 | 19.0 | 48.5 | 19.7 | ||||||
| 350.md | 10.3 | 24.5 | 10.3 | 24.5 | 10.3 | 24.4 | ||||||
| 351.palm | 112 | 3.29 | 112 | 3.29 | 115 | 3.23 | ||||||
| 352.ep | 51.1 | 10.4 | 51.1 | 10.4 | 51.1 | 10.4 | ||||||
| 353.clvrleaf | 35.6 | 12.5 | 35.6 | 12.5 | 35.7 | 12.5 | ||||||
| 354.cg | 31.5 | 13.0 | 31.4 | 13.0 | 31.5 | 13.0 | ||||||
| 355.seismic | 25.5 | 14.5 | 25.6 | 14.5 | 25.5 | 14.5 | ||||||
| 356.sp | 22.1 | 12.5 | 22.1 | 12.5 | 22.2 | 12.4 | ||||||
| 357.csp | 19.1 | 14.1 | 19.1 | 14.1 | 19.1 | 14.1 | ||||||
| 359.miniGhost | 36.9 | 10.0 | 36.9 | 9.99 | 36.9 | 10.0 | ||||||
| 360.ilbdc | 29.2 | 12.6 | 29.2 | 12.6 | 29.2 | 12.6 | ||||||
| 363.swim | 55.8 | 4.13 | 56.5 | 4.07 | 55.5 | 4.14 | ||||||
| 370.bt | 8.41 | 26.5 | 8.40 | 26.5 | 8.40 | 26.5 | ||||||
Submit Notes
The config file option 'submit' was used.
Platform Notes
Sysinfo program /home/ACCEL1.2/Docs/sysinfo $Rev: 6965 $ $Date:: 2015-04-21 #$ c05a7f14b1b1765e3fe1df68447e8a35 running on cy01rh76 Wed Mar 09 02:46:29 2019 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/accel/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) Gold 6240 CPU @ 2.60GHz 2 "physical id"s (chips) 36 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 18 siblings : 18 physical 0: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27 physical 1: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27 cache size : 25344 KB From /proc/meminfo MemTotal: 792031344 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 7.6 (Maipo) From /etc/*release* /etc/*version* os-release: NAME="Red Hat Enterprise Linux Server" VERSION="7.6 (Maipo)" ID="rhel" ID_LIKE="fedora" VARIANT="Server" VARIANT_ID="server" VERSION_ID="7.6" PRETTY_NAME="Red Hat Enterprise Linux Server 7.6 (Maipo)" redhat-release: Red Hat Enterprise Linux Server release 7.6 (Maipo) system-release: Red Hat Enterprise Linux Server release 7.6 (Maipo) system-release-cpe: cpe:/o:redhat:enterprise_linux:7.6:ga:server uname -a: Linux cy01rh76 3.10.0-957.el7.x86_64 #1 SMP Thu Oct 4 20:48:51 UTC 2018 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Mar 09 02:45 SPEC is set to: /home/ACCEL1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/rhel-home xfs 477G 81G 396G 17% /home Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS Lenovo -[IVE135S-2.10]- 03/08/2019 Memory: 24x Samsung M393A4K40CB2-CVF 32 GB 2 rank 2933 MT/s (End of data from sysinfo program)
General Notes
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented. Run nvidia-smi -pm 1 to enable persistence mode.
