Cray (Test Sponsor: Indiana University) NVIDIA Tesla K20 Cray XK7 |
SPECaccel_acc_base = 2.00 |
|
SPECaccel_acc_peak = Not Run |
| ACCEL license: | 3440A | Test date: | May-2018 |
|---|---|---|---|
| Test sponsor: | Indiana University | Hardware Availability: | Apr-2013 |
| Tested by: | Indiana University | Software Availability: | Feb-2018 |
| Hardware | |
|---|---|
| CPU Name: | AMD Opteron 6276 |
| CPU Characteristics: | AMD Turbo CORE Technology up to 3.2GHz, Turbo CORE off |
| CPU MHz: | 2300 |
| CPU MHz Maximum: | 3200 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 1 chip, 16 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 16 KB D on chip per core |
| Secondary Cache: | 16 MB I+D on chip per chip, 2 MB shared / 2 cores |
| L3 Cache: | 16 MB I+D on chip per chip, 8 MB shared / 8 cores |
| Other Cache: | None |
| Memory: | 32 GB (4 x 8 GB 2Rx4 PC3L-12800R-11, ECC) |
| Disk Subsystem: | None |
| Other Hardware: | None |
| Accelerator | |
|---|---|
| Accel Model Name: | Tesla K20 |
| Accel Vendor: | NVIDIA |
| Accel Name: | NVIDIA Tesla K20 |
| Type of Accel: | GPU |
| Accel Connection: | PCIe 2.0 16x |
| Does Accel Use ECC: | yes |
| Accel Description: | NVIDIA Tesla K20m GPU, 2496 CUDA cores, 706 MHz, 5 GB GDDR5 RAM |
| Accel Driver: | NVIDIA UNIX x86_64 Kernel Module 352.68 |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64), Cray 3.0.101-0.46.1_1.0502.8871-cray_gem_c |
| Compiler: | PGI Accelerator Fortran/C/C++ Server, Release 16.4 |
| File System: | lustre NFSv3 (DDN SFA12KE) over 10GB Ethernet |
| System State: | Run level 3 (multi-user) |
| Other Software: | NVIDIA CUDA 7.5.18 |

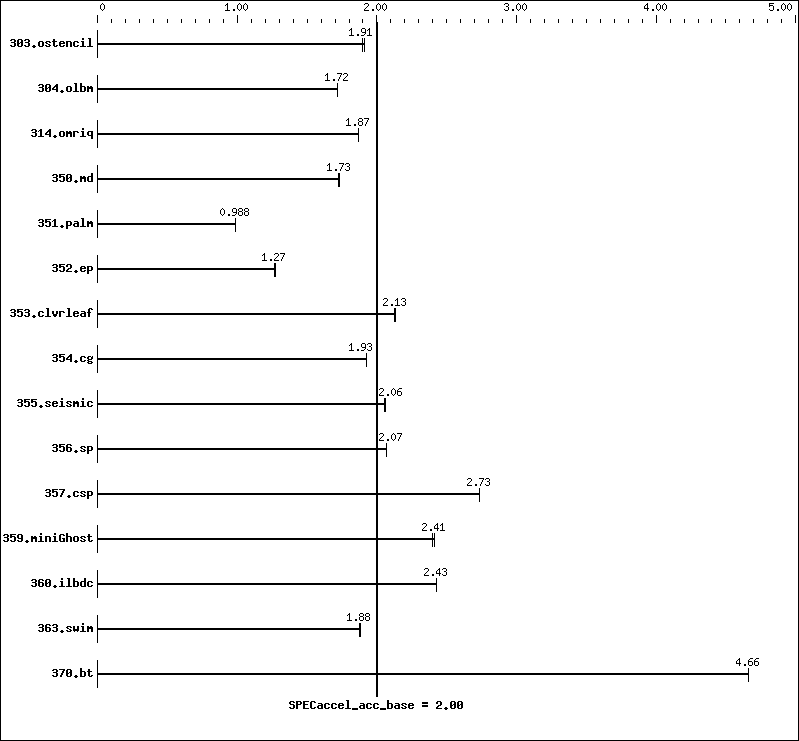

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 303.ostencil | 75.9 | 1.91 | 76.5 | 1.90 | 75.9 | 1.91 | ||||||
| 304.olbm | 265 | 1.72 | 265 | 1.72 | 265 | 1.72 | ||||||
| 314.omriq | 512 | 1.87 | 512 | 1.87 | 512 | 1.87 | ||||||
| 350.md | 146 | 1.73 | 146 | 1.73 | 146 | 1.73 | ||||||
| 351.palm | 376 | 0.983 | 374 | 0.990 | 375 | 0.988 | ||||||
| 352.ep | 418 | 1.27 | 416 | 1.27 | 418 | 1.27 | ||||||
| 353.clvrleaf | 209 | 2.13 | 209 | 2.13 | 209 | 2.13 | ||||||
| 354.cg | 212 | 1.93 | 212 | 1.93 | 212 | 1.93 | ||||||
| 355.seismic | 180 | 2.05 | 180 | 2.06 | 180 | 2.06 | ||||||
| 356.sp | 134 | 2.07 | 134 | 2.07 | 134 | 2.07 | ||||||
| 357.csp | 98.8 | 2.73 | 98.8 | 2.73 | 98.8 | 2.73 | ||||||
| 359.miniGhost | 153 | 2.41 | 154 | 2.40 | 153 | 2.41 | ||||||
| 360.ilbdc | 151 | 2.43 | 151 | 2.43 | 151 | 2.43 | ||||||
| 363.swim | 123 | 1.87 | 123 | 1.88 | 122 | 1.88 | ||||||
| 370.bt | 47.9 | 4.66 | 47.8 | 4.66 | 47.8 | 4.66 | ||||||
Platform Notes
Sysinfo program /N/dc2/projects/hpc/lijunj/SPEC/accel-1.2-run/br2/cuda75/Docs/sysinfo $Rev: 6965 $ $Date:: 2015-04-21 #$ c05a7f14b1b1765e3fe1df68447e8a35 running on nid00206 Fri May 4 18:29:01 2018 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/accel/Docs/config.html#sysinfo From /proc/cpuinfo model name : AMD Opteron(TM) Processor 6276 1 "physical id"s (chips) 16 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 8 siblings : 16 physical 0: cores 0 1 2 3 4 5 6 7 cache size : 2048 KB From /proc/meminfo MemTotal: 33083668 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 3 uname -a: Linux nid00206 3.0.101-0.46.1_1.0502.8871-cray_gem_c #1 SMP Mon Feb 12 13:56:55 UTC 2018 x86_64 x86_64 x86_64 GNU/Linux SPEC is set to: /N/dc2/projects/hpc/lijunj/SPEC/accel-1.2-run/br2/cuda75 Filesystem Type Size Used Avail Use% Mounted on 10.10.0.171@o2ib:10.10.0.172@o2ib:/dc2 lustre 5.3P 4.5P 759T 86% /N/dc2 Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode' (End of data from sysinfo program) (End of data from sysinfo program)
General Notes
No: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. No: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. No: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented. This benchmark result is intended to provide perspective on past performance using the historical hardware and/or software described on this result page. The system as described on this result page was formerly generally available. At the time of this publication, it may not be shipping, and/or may not be supported, and/or may fail to meet other tests of General Availability described in the SPEC HPG Policy document, http://www.spec.org/hpg/policy.html This measured result may not be representative of the result that would be measured were this benchmark run with hardware and software available as of the publication date.
Base Compiler Invocation
C benchmarks:
| pgcc |
Fortran benchmarks:
| pgfortran |
Benchmarks using both Fortran and C:
| pgcc pgfortran |
Base Optimization Flags
C benchmarks:
| -fast -Mfprelaxed -acc -ta=tesla:cc35 -ta=tesla:cuda7.5 |
Fortran benchmarks:
| -fast -Mfprelaxed -acc -ta=tesla:cc35 -ta=tesla:cuda7.5 |
Benchmarks using both Fortran and C:
| 353.clvrleaf: | -fast -Mfprelaxed -acc -ta=tesla:cc35 -ta=tesla:cuda7.5 |
| 359.miniGhost: | -fast -Mfprelaxed -acc -ta=tesla:cc35 -ta=tesla:cuda7.5 -Mnomain |
