SPEC® ACCEL™ OCL Result

Copyright 2014-2015 Standard Performance Evaluation Corporation

Cray (Test Sponsor: Indiana University)

NVIDIA Tesla K20

Cray XK7

SPECaccel_ocl_base = 1.44

SPECaccel_ocl_peak = Not Run

ACCEL license: 3440A Test date: May-2015
Test sponsor: Indiana University Hardware Availability: Apr-2013
Tested by: Indiana University Software Availability: Jul-2014

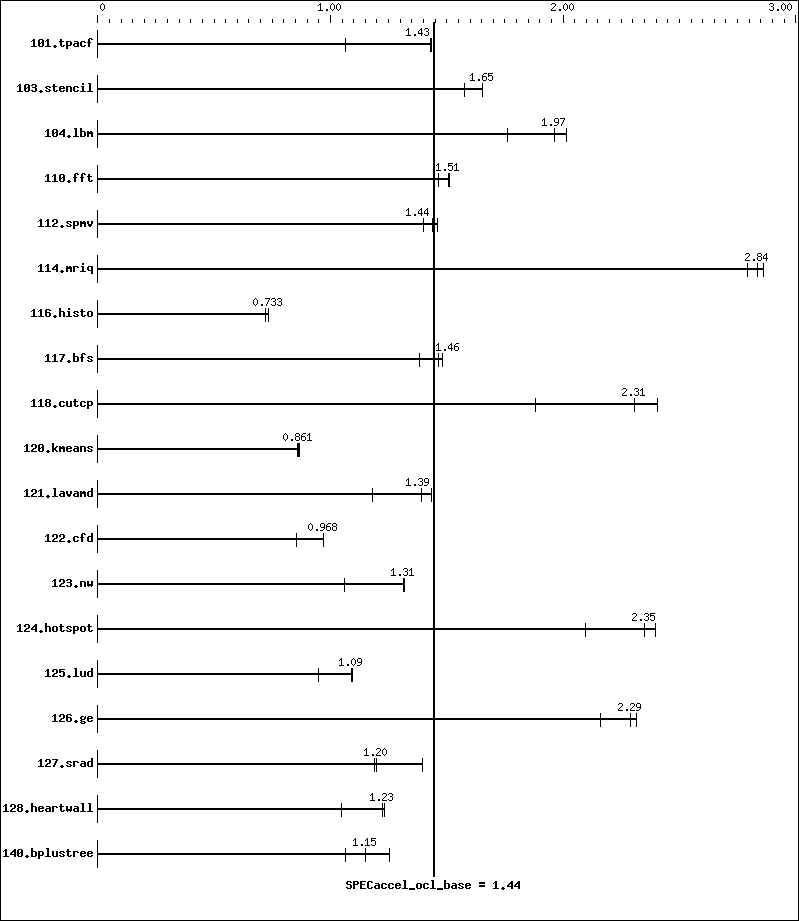

Benchmark results graph
Hardware
CPU Name: AMD Opteron 6276
CPU Characteristics: AMD Turbo CORE Technology up to 3.2GHz, Turbo
CORE off
CPU MHz: 2300
CPU MHz Maximum: 3200
FPU: Integrated
CPU(s) enabled: 16 cores, 1 chip, 16 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 16 KB D on chip per core
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory: 32 GB (4 x 8 GB 2Rx4 PC3L-12800R-11, ECC)
Disk Subsystem: None
Other Hardware: None
Accelerator
Accel Model Name: Tesla K20
Accel Vendor: NVIDIA
Accel Name: NVIDIA Tesla K20
Type of Accel: GPU
Accel Connection: PCIe 2.0 16x
Does Accel Use ECC: yes
Accel Description: NVIDIA Tesla K20m GPU, 2496 CUDA cores, 706MHz, 5
GB GDDR5 RAM
Accel Driver: NVIDIA UNIX x86_64 Kernel Module 319.82
Software
Operating System: SUSE Linux Enterprise Server 11 (x86_64), Cray
Linux Environment 4.2
SUSE Linux Enterprise Server 11 (x86_64)
2.6.32.59-0.7.1_1.0402.7496-cray_gem_c
Compiler: GNU Fortran (GCC) 4.9.2
File System: NFSv3 (IBM N5500 NAS) over Gb ethernet
System State: Multi-user, run level 3
Other Software: NVIDIA CUDA 5.5.51

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
101.tpacf 74.9  1.43   74.5  1.44   100    1.07
103.stencil 75.5  1.65   75.5  1.66   79.4  1.57
104.lbm 55.6  2.01   57.0  1.97   63.6  1.76
110.fft 73.7  1.51   73.3  1.51   75.7  1.47
112.spmv 102    1.44   101    1.46   105    1.40
114.mriq 38.4  2.84   39.0  2.79   38.1  2.86
116.histo 156    0.733  158    0.720  155    0.734
117.bfs 78.9  1.48   84.5  1.38   79.9  1.46
118.cutcp 41.2  2.40   52.6  1.88   42.9  2.31
120.kmeans 116    0.865  116    0.861  116    0.860
121.lavamd 92.2  1.18   78.2  1.39   75.9  1.44
122.cfd 130    0.970  148    0.852  130    0.968
123.nw 87.3  1.32   108    1.06   87.6  1.31
124.hotspot 48.5  2.35   54.4  2.10   47.6  2.40
125.lud 109    1.09   125    0.949  109    1.09
126.ge 67.7  2.29   71.8  2.16   67.0  2.31
127.srad 95.9  1.19   81.7  1.40   95.2  1.20
128.heartwall 86.5  1.23   101    1.05   85.9  1.23
140.bplustree 86.3  1.25   102    1.06   93.8  1.15

Platform Notes

 Sysinfo program /N/soft/mason/specaccel-1.0/Docs/sysinfo
 $Rev: 6874 $ $Date:: 2013-11-20 #$ 0953404ef7e75a5f9bbb534c6de3f831
 running on nid00365 Tue May 12 14:33:46 2015

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/accel/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : AMD Opteron(TM) Processor 6276
       1 "physical id"s (chips)
       16 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 16
       siblings  : 16
       physical 0: cores 0 1 2 3 4 5 6 7
    cache size : 2048 KB

 From /proc/meminfo
    MemTotal:       33084648 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    SUSE Linux Enterprise Server 11 (x86_64)

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 11 (x86_64)
       VERSION = 11
       PATCHLEVEL = 1
    mazama-release:
       Mazama Wed Aug 28 02:06:30 CDT 2013 on hssbld0 by bwdev
       lsb-cray-mazama-7.1.0

 uname -a:
    Linux nid00365 2.6.32.59-0.7.1_1.0402.7496-cray_gem_c #1 SMP Fri Mar 27
    21:58:55 UTC 2015 x86_64 x86_64 x86_64 GNU/Linux


 SPEC is set to: /N/soft/mason/specaccel-1.0
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /N/soft        dvs   599T  121T  478T  21% /N/soft

 Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode'

 (End of data from sysinfo program)

Base Runtime Environment

C benchmarks:

 OpenCL Platform: NVIDIA CUDA, OpenCL 1.1 CUDA 4.2.1   OpenCL Device #0: Tesla K20, v 319.82

C++ benchmarks:

 OpenCL Platform: NVIDIA CUDA, OpenCL 1.1 CUDA 4.2.1   OpenCL Device #0: Tesla K20, v 319.82

Base Compiler Invocation

C benchmarks:

 gcc

C++ benchmarks:

 g++

Base Optimization Flags

C benchmarks:

 -O2   -I/opt/nvidia/cudatoolkit/default/include   -L/opt/cray/nvidia/default/lib64   -lcuda   -lOpenCL

C++ benchmarks:

 -O2   -I/opt/nvidia/cudatoolkit/default/include   -L/opt/cray/nvidia/default/lib64   -lcuda   -lOpenCL

The flags file that was used to format this result can be browsed at
http://www.spec.org/accel/flags/flags-advanced.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/accel/flags/flags-advanced.xml.
