Intel (Test Sponsor: Intel Corporation) Intel Xeon E5-2697 v3 R2208WTTYC1 |
SPECaccel_ocl_base = 2.09 |
|
SPECaccel_ocl_peak = 2.26 |
| ACCEL license: | 13 | Test date: | Feb-2015 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Sep-2014 |
| Tested by: | Pavel Shelepugin, Alexander Bobyr | Software Availability: | Feb-2015 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2697 v3 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.6 GHz, 9.6 GT/s QPI, Hyper-Threading enabled |
| CPU MHz: | 2600 |
| CPU MHz Maximum: | 3600 |
| FPU: | Integrated |
| CPU(s) enabled: | 28 cores, 2 chips, 14 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1-2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 35 MB I+D on chip per chip, 35 MB shared / 14 cores |
| Other Cache: | None |
| Memory: | 64 GB (8 x 8 GB 2Rx4 PC4-17000R-15, ECC) |
| Disk Subsystem: | Panasas ActiveStor 12, PanFS 6.0 |
| Other Hardware: | None |
| Accelerator | |
|---|---|
| Accel Model Name: | Intel Xeon E5-2697 v3 |
| Accel Vendor: | Intel |
| Accel Name: | Intel Xeon E5-2697 v3 |
| Type of Accel: | CPU |
| Accel Connection: | 9.6 GT/s QPI |
| Does Accel Use ECC: | yes |
| Accel Description: | 2x Intel Xeon E5-2697 v3 CPUs with Hyper-Threading |
| Accel Driver: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.5 (Santiago) 2.6.32-358.6.2.el6.x86_64.crt1 |
| Compiler: | Intel C++ Composer XE 2015 for Linux, Version 15.0.1.133 Build 20141023 |
| File System: | panfs |
| System State: | Run level 3 (multi-user) |
| Other Software: | Intel OpenCL SDK 2015 Version 15.1 Build 5.0.0.57 |

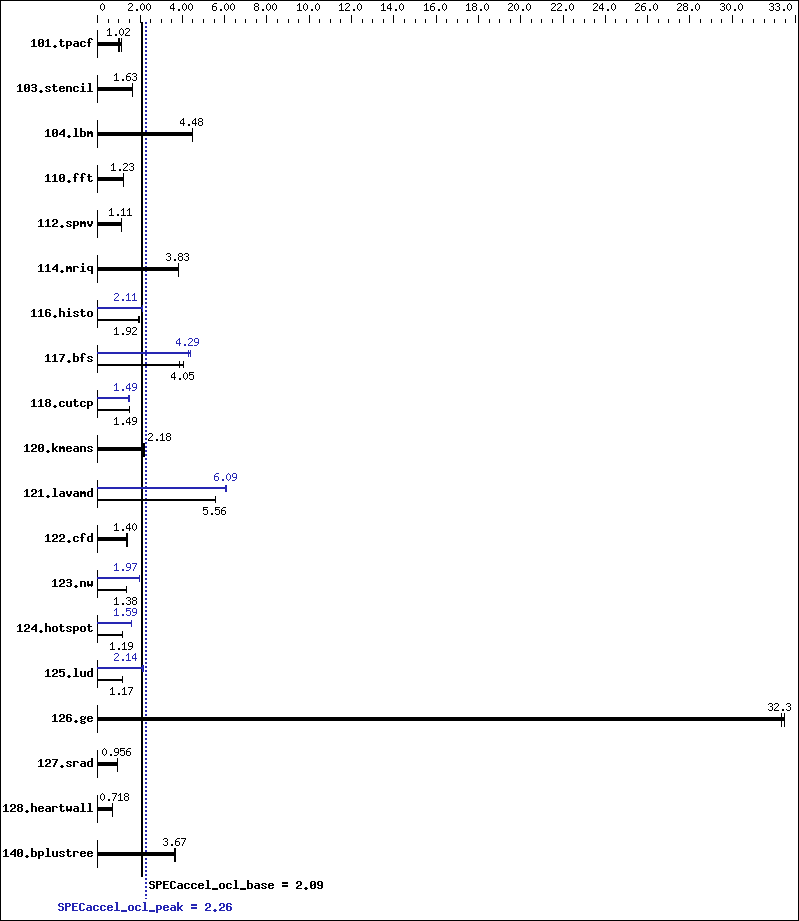

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 101.tpacf | 105 | 1.02 | 111 | 0.961 | 95.2 | 1.12 | 105 | 1.02 | 111 | 0.961 | 95.2 | 1.12 |
| 103.stencil | 76.9 | 1.63 | 76.7 | 1.63 | 76.6 | 1.63 | 76.9 | 1.63 | 76.7 | 1.63 | 76.6 | 1.63 |
| 104.lbm | 25.0 | 4.48 | 25.0 | 4.48 | 24.9 | 4.49 | 25.0 | 4.48 | 25.0 | 4.48 | 24.9 | 4.49 |
| 110.fft | 89.8 | 1.24 | 90.0 | 1.23 | 90.1 | 1.23 | 89.8 | 1.24 | 90.0 | 1.23 | 90.1 | 1.23 |
| 112.spmv | 132 | 1.12 | 133 | 1.11 | 132 | 1.11 | 132 | 1.12 | 133 | 1.11 | 132 | 1.11 |
| 114.mriq | 28.5 | 3.82 | 28.4 | 3.83 | 28.4 | 3.83 | 28.5 | 3.82 | 28.4 | 3.83 | 28.4 | 3.83 |
| 116.histo | 59.5 | 1.92 | 57.6 | 1.98 | 59.6 | 1.91 | 54.0 | 2.11 | 54.0 | 2.11 | 53.6 | 2.13 |
| 117.bfs | 28.9 | 4.05 | 28.9 | 4.05 | 30.4 | 3.85 | 26.7 | 4.38 | 27.4 | 4.28 | 27.3 | 4.29 |
| 118.cutcp | 66.6 | 1.49 | 66.6 | 1.49 | 66.6 | 1.49 | 69.2 | 1.43 | 66.6 | 1.49 | 66.5 | 1.49 |
| 120.kmeans | 46.2 | 2.17 | 45.5 | 2.20 | 45.9 | 2.18 | 46.2 | 2.17 | 45.5 | 2.20 | 45.9 | 2.18 |
| 121.lavamd | 19.6 | 5.55 | 19.6 | 5.56 | 19.5 | 5.58 | 17.9 | 6.10 | 18.0 | 6.06 | 17.9 | 6.09 |
| 122.cfd | 90.1 | 1.40 | 91.3 | 1.38 | 89.9 | 1.40 | 90.1 | 1.40 | 91.3 | 1.38 | 89.9 | 1.40 |
| 123.nw | 83.5 | 1.38 | 83.3 | 1.38 | 83.3 | 1.38 | 58.3 | 1.97 | 58.6 | 1.96 | 58.4 | 1.97 |
| 124.hotspot | 95.7 | 1.19 | 96.0 | 1.19 | 95.6 | 1.19 | 72.0 | 1.58 | 71.8 | 1.59 | 71.8 | 1.59 |
| 125.lud | 102 | 1.17 | 102 | 1.17 | 101 | 1.17 | 55.4 | 2.15 | 55.6 | 2.14 | 55.7 | 2.13 |
| 126.ge | 4.79 | 32.3 | 4.80 | 32.3 | 4.77 | 32.5 | 4.79 | 32.3 | 4.80 | 32.3 | 4.77 | 32.5 |
| 127.srad | 119 | 0.956 | 119 | 0.957 | 119 | 0.955 | 119 | 0.956 | 119 | 0.957 | 119 | 0.955 |
| 128.heartwall | 148 | 0.716 | 147 | 0.721 | 148 | 0.718 | 148 | 0.716 | 147 | 0.721 | 148 | 0.718 |
| 140.bplustree | 29.3 | 3.69 | 29.4 | 3.67 | 29.8 | 3.62 | 29.3 | 3.69 | 29.4 | 3.67 | 29.8 | 3.62 |
Peak Tuning Notes
The following compiler environment variables were used for the Peak run: (the description can be found in the flags file) CL_CONFIG_CPU_VECTORIZER_MODE=8 for 116.histo CL_CONFIG_CPU_VECTORIZER_MODE=4 for 117.bfs CL_CONFIG_CPU_RT_LOOP_UNROLL=16 for 118.cutcp CL_CONFIG_USE_FAST_RELAXED_MATH=1 for 121.lavamd
Submit Notes
The config file option 'submit' was used. 'numactl' utility was used for 'submit' option.
Platform Notes
Sysinfo program /panfs/panfs3/users2/pshelepu/kit47/Docs/sysinfo $Rev: 6874 $ $Date:: 2013-11-20 #$ 0953404ef7e75a5f9bbb534c6de3f831 running on ehk288 Tue Feb 24 02:18:44 2015 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/accel/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2697 v3 @ 2.60GHz 2 "physical id"s (chips) 56 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 14 siblings : 28 physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 cache size : 35840 KB From /proc/meminfo MemTotal: 65860360 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.5 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux ehk288 2.6.32-358.6.2.el6.x86_64.crt1 #4 SMP Fri May 17 15:33:33 MDT 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Feb 19 10:17 SPEC is set to: /panfs/panfs3/users2/pshelepu/kit47 Filesystem Type Size Used Avail Use% Mounted on panfs://36.101.211.31/users2 panfs 76T 49T 28T 65% /panfs/panfs3/users2 Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode' (End of data from sysinfo program)
Base Runtime Environment
C benchmarks:
| OpenCL Platform: Intel(R) OpenCL, OpenCL 1.2 LINUX OpenCL Device #0: Intel(R) Xeon(R) CPU E5-2697 v3 @ 2.60GHz, v 1.2.0.57 |
C++ benchmarks:
| OpenCL Platform: Intel(R) OpenCL, OpenCL 1.2 LINUX OpenCL Device #0: Intel(R) Xeon(R) CPU E5-2697 v3 @ 2.60GHz, v 1.2.0.57 |
Base Optimization Flags
C benchmarks:
| -O3 -xCORE-AVX2 -lintelocl |
C++ benchmarks:
| -O3 -xCORE-AVX2 -lintelocl |
Peak Runtime Environment
C benchmarks:
| OpenCL Platform: Intel(R) OpenCL, OpenCL 1.2 LINUX OpenCL Device #0: Intel(R) Xeon(R) CPU E5-2697 v3 @ 2.60GHz, v 1.2.0.57 |
C++ benchmarks:
| OpenCL Platform: Intel(R) OpenCL, OpenCL 1.2 LINUX OpenCL Device #0: Intel(R) Xeon(R) CPU E5-2697 v3 @ 2.60GHz, v 1.2.0.57 |
Peak Optimization Flags
C benchmarks:
| 110.fft: | basepeak = yes |
| 114.mriq: | basepeak = yes |
| 116.histo: | -O3 -xCORE-AVX2 -lintelocl |
| 117.bfs: | Same as 116.histo |
| 118.cutcp: | Same as 116.histo |
| 121.lavamd: | Same as 116.histo |
| 124.hotspot: | -O3 -xCORE-AVX2 -DSPEC_ACCEL_WG_SIZE_0_0=40 -lintelocl |
| 127.srad: | basepeak = yes |
| 128.heartwall: | basepeak = yes |
| 140.bplustree: | basepeak = yes |
C++ benchmarks:
| 101.tpacf: | basepeak = yes |
| 103.stencil: | basepeak = yes |
| 104.lbm: | basepeak = yes |
| 112.spmv: | basepeak = yes |
| 120.kmeans: | basepeak = yes |
| 122.cfd: | basepeak = yes |
| 123.nw: | -O3 -xCORE-AVX2 -DSPEC_ACCEL_WG_SIZE_0_0=32 -lintelocl |
| 125.lud: | Same as 123.nw |
| 126.ge: | basepeak = yes |
