Dell (Test Sponsor: Technische Universitaet Dresden) AMD Radeon HD 7970 Precision T5600 |
SPECaccel_acc_base = 2.33 SPECaccel_acc_energy_base = 3.75 |
|
SPECaccel_acc_peak = Not Run |
| ACCEL license: | 37A | Test date: | Aug-2014 |
|---|---|---|---|
| Test sponsor: | Technische Universitaet Dresden | Hardware Availability: | Feb-2012 |
| Tested by: | Technische Universitaet Dresden | Software Availability: | Jun-2014 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2667 |
| CPU Characteristics: | |
| CPU MHz: | 2900 |
| CPU MHz Maximum: | 3500 |
| FPU: | Integrated |
| CPU(s) enabled: | 6 cores, 1 chip, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (4 x 4 GB 2Rx4 PC3-12800R-9, ECC) |
| Disk Subsystem: | 1 TB SATA disk on Dell PERC H310 PCIe host-based RAID card |
| Other Hardware: | None |
| Accelerator | |
|---|---|
| Accel Model Name: | Radeon HD 7970 |
| Accel Vendor: | AMD |
| Accel Name: | AMD Radeon HD 7970 |
| Type of Accel: | GPU |
| Accel Connection: | PCIe 3.0 x16 |
| Does Accel Use ECC: | No |
| Accel Description: | AMD Radeon HD 7970, 32 compute units (2048 stream processors), 850 MHz - 925 MHz, 3GB GDDR5 RAM, Tahiti Generation |
| Accel Driver: | AMD Catalyst 14.4 |
| Software | |
|---|---|
| Operating System: | SLES11 SP3 SUSE Linux Enterprise Server 11 (x86_64) 3.0.101-0.35-default |
| Compiler: | PGI Accelerator Fortran/C/C++ Workstation, Release 14.6 |
| File System: | ext3 |
| System State: | Run level 3 (multi user) |
| Other Software: | AMD APP SDK 2.9 |
| Power | |
|---|---|
| Power Supply: | 825 W |
| Power Supply Details: | Dell D825EF-00 |
| Max. Power (W): | 305.49 |
| Idle Power (W): | 66.72 |
| Min. Temperature (C): | 22.94 |
| Power Analyzer | |
|---|---|
| Power Analyzer: | Power Analyzer |
| Hardware Vendor: | ZES Zimmer |
| Model: | LMG450 |
| Serial Number: | 07510905 |
| Input Connection: | RS232 via USB-adapter |
| Metrology Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Calibration By: | ZES Zimmer |
| Calibration Label: | 04300751001 |
| Calibration Date: | 11.05.2013 |
| PTDaemon Version: | 1.6.2 (372e138a; 2013-12-04) |
| Setup Description: | connected to the single power supply that powers the system |
| Current Ranges Used: | 1.2A, 2.5A |
| Voltage Range Used: | 250V |
| Temperature Meter | |
|---|---|
| Temperature Meter: | Temperature Meter |
| Hardware Vendor: | Digi |
| Model: | Watchport/H |
| Serial Number: | W00513713 |
| Input Connection: | USB |
| PTDaemon Version: | 1.6.2 (372e138a; 2013-12-04) |
| Setup Description: | positioned in front of intake fan |

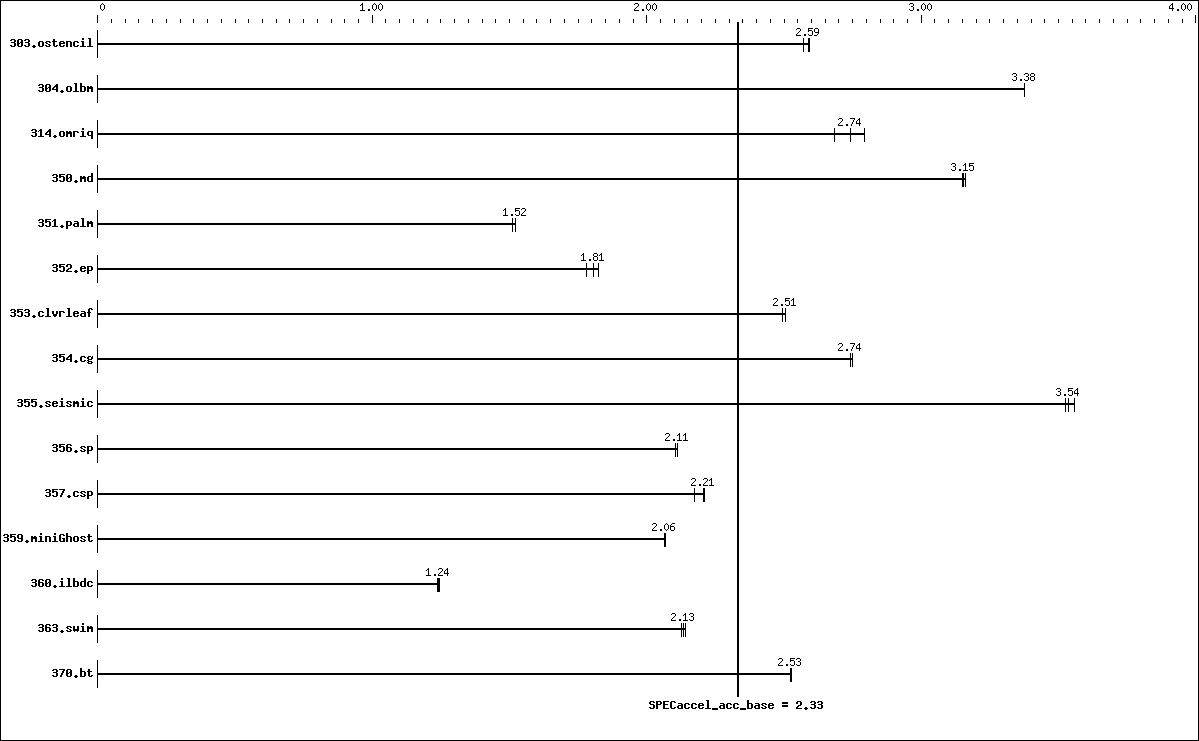

Base Results Table
| Benchmark | Seconds | Ratio | Energy (kJ) |
Maximum Power |
Average Power |
Energy Ratio |
Seconds | Ratio | Energy (kJ) |
Maximum Power |
Average Power |
Energy Ratio |
Seconds | Ratio | Energy (kJ) |
Maximum Power |
Average Power |
Energy Ratio |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||||||
| 303.ostencil | 55.9 | 2.59 | 13.1 | 238 | 234 | 4.04 | 56.4 | 2.57 | 13.3 | 240 | 236 | 3.98 | 56.0 | 2.59 | 13.2 | 240 | 236 | 3.99 |
| 304.olbm | 135 | 3.38 | 27.2 | 207 | 202 | 5.74 | 135 | 3.38 | 27.2 | 207 | 202 | 5.74 | 135 | 3.38 | 27.1 | 207 | 201 | 5.75 |
| 314.omriq | 356 | 2.69 | 101 | 302 | 283 | 3.80 | 349 | 2.74 | 98.5 | 299 | 282 | 3.88 | 342 | 2.79 | 96.5 | 305 | 282 | 3.96 |
| 350.md | 79.9 | 3.15 | 22.1 | 282 | 276 | 4.26 | 80.0 | 3.15 | 22.2 | 281 | 277 | 4.24 | 79.7 | 3.16 | 22.0 | 280 | 276 | 4.27 |
| 351.palm | 243 | 1.52 | 43.2 | 186 | 177 | 2.48 | 243 | 1.52 | 43.1 | 187 | 177 | 2.48 | 245 | 1.51 | 43.3 | 188 | 177 | 2.47 |
| 352.ep | 291 | 1.82 | 48.5 | 170 | 167 | 3.39 | 293 | 1.81 | 49.1 | 171 | 167 | 3.34 | 298 | 1.78 | 49.8 | 170 | 167 | 3.30 |
| 353.clvrleaf | 178 | 2.49 | 39.6 | 230 | 222 | 3.97 | 177 | 2.51 | 39.6 | 231 | 223 | 3.98 | 178 | 2.51 | 39.5 | 229 | 223 | 3.98 |
| 354.cg | 148 | 2.75 | 29.5 | 222 | 199 | 4.75 | 149 | 2.74 | 29.6 | 223 | 199 | 4.73 | 149 | 2.74 | 29.5 | 221 | 198 | 4.75 |
| 355.seismic | 104 | 3.56 | 24.1 | 248 | 232 | 5.36 | 105 | 3.53 | 24.3 | 248 | 231 | 5.32 | 105 | 3.54 | 24.3 | 248 | 232 | 5.32 |
| 356.sp | 131 | 2.11 | 26.2 | 206 | 201 | 3.54 | 131 | 2.11 | 26.3 | 205 | 200 | 3.53 | 131 | 2.11 | 26.2 | 205 | 201 | 3.54 |
| 357.csp | 122 | 2.21 | 24.3 | 202 | 199 | 3.63 | 124 | 2.17 | 24.7 | 204 | 199 | 3.57 | 122 | 2.21 | 24.3 | 203 | 199 | 3.62 |
| 359.miniGhost | 179 | 2.06 | 34.9 | 238 | 195 | 3.41 | 178 | 2.07 | 34.8 | 236 | 195 | 3.42 | 179 | 2.06 | 34.8 | 234 | 194 | 3.42 |
| 360.ilbdc | 296 | 1.24 | 65.2 | 223 | 220 | 1.99 | 295 | 1.24 | 65.0 | 223 | 220 | 2.00 | 295 | 1.24 | 64.9 | 223 | 220 | 2.00 |
| 363.swim | 107 | 2.14 | 22.0 | 209 | 204 | 3.46 | 108 | 2.13 | 22.1 | 209 | 205 | 3.44 | 108 | 2.13 | 22.1 | 207 | 204 | 3.44 |
| 370.bt | 88.2 | 2.53 | 17.4 | 204 | 198 | 4.33 | 88.4 | 2.52 | 17.5 | 204 | 198 | 4.33 | 88.3 | 2.53 | 17.5 | 204 | 198 | 4.33 |
Operating System Notes
continuously upgraded via SLES update manager
Platform Notes
Sysinfo program /home/alex/accel-1.0/Docs/sysinfo $Rev: 6874 $ $Date:: 2013-11-20 #$ 0953404ef7e75a5f9bbb534c6de3f831 running on playground Wed Aug 20 15:00:06 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/accel/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2667 0 @ 2.90GHz 1 "physical id"s (chips) 12 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 12 physical 0: cores 0 1 2 3 4 5 cache size : 15360 KB From /proc/meminfo MemTotal: 16256140 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 3 uname -a: Linux playground 3.0.101-0.35-default #1 SMP Wed Jul 9 11:43:04 UTC 2014 (c36987d) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Aug 20 14:33 last=S SPEC is set to: /home/alex/accel-1.0 Filesystem Type Size Used Avail Use% Mounted on /dev/sda3 ext3 866G 96G 726G 12% /home Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode' (End of data from sysinfo program)
Base Compiler Invocation
C benchmarks:
| pgcc |
Fortran benchmarks:
| pgfortran |
Benchmarks using both Fortran and C:
| pgcc pgfortran |
Base Optimization Flags
C benchmarks:
| -acc -fast -ta=radeon |
Fortran benchmarks:
| -acc -fast -ta=radeon |
Benchmarks using both Fortran and C:
| 353.clvrleaf: | -acc -fast -ta=radeon |
| 359.miniGhost: | -acc -fast -ta=radeon -Mnomain |
