Dell Inc. PowerEdge R7615 388284 SPECjbb2015-Composite max-jOPS
370404 SPECjbb2015-Composite critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: May 23,2023
SPEC license #: 6573 Hardware Availability: Jul-2023 Software Availability: Apr-2023 Publication: Thu Jun 15 12:31:48 EDT 2023
Benchmark Results Summary

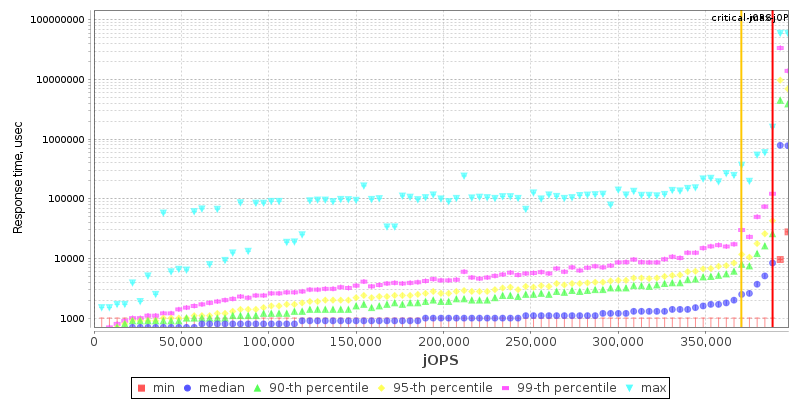

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://www.dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores128
Total Threads256
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameDell Inc. PowerEdge R7615
VendorDell Inc.
Vendor URLhttp://www.dell.com/
AvailableJul-2023
ModelPowerEdge R7615
Form Factor2U Rack
CPU NameAMD EPYC 9754
CPU Characteristics128 core, 2.25 GHz, 256 MB L3 Cache (Max. Boost Clock up to 3.10 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System128
Cores Per Chip128
Threads Per System256
Threads Per Core2
Version1.4.1
CPU Frequency (MHz)2250
Primary Cache32 KB (I) + 32 KB (D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache256 MB (I+D) on chip per chip
Other CacheNone
Disk1 x Dell Ent NVMe U.2 6.4TB
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB RDIMM 2Rx4 PC5-4800B-R (slots A1-12, populated)
# and type of Network Interface Cards (NICs)1 x Broadcom NetXtreme BCM5720 Gigabit Ethernet PCIe 1Gb/s Dual Port
Power Supply Quantity and Rating (W)1 x 1400
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttp://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.7
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 17.0.7
AvailableApr-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Logical Processor : Enabled
  • L1 Stream HW Prefetcher : Disabled
  • L2 Stream HW Prefetcher : Disabled
  • MADT Core Enumeration : Linear
  • NUMA Nodes Per Socket : 2
  • L3 cache as NUMA Domain : Disabled
  • System Profile : Custom
  • Determinism Slider : Power Determinism
  • Algorithm Performance Boost Disable (ApbDis) : Enabled
  • ApbDis Fixed Socket P-State : P0
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(3)
OS Image Description os_1
Tuning
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 20000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 200000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 128 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 1 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -Xms720g -Xmx720g -Xmn710g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=15 -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=256 -XX:SurvivorRatio=84 -XX:TargetSurvivorRatio=99 -XX:+UseNUMA -XX:-UseAdaptiveNUMAChunkSizing -XX:+UseTransparentHugePages -XX:InlineSmallCode=11k -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100
Tuning Used numactl to run on all available nodes
  • numactl --cpunodebind=0-1 --interleave=0-1
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 379460 383872 388284 392696 397109
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 328718 372841 381666 386078 386078 370404
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 220616 / 225028 8825 / 13237 4412 / 8825 4412 / 8825 - / 4412 - / 4412
1000us 370635 / 375047 242678 / 247090 75009 / 79422 52948 / 57360 26474 / 30886 - / 4412
5000us 388284 / - 379460 / 383872 352986 / 357398 326512 / 330924 225028 / 211791 35299 / 30886
10000us 388284 / - 388284 / - 375047 / 379460 366223 / 370635 326512 / 330924 75009 / 39711
25000us 388284 / - 388284 / - 383872 / 388284 379460 / 383872 375047 / 370635 119133 / 39711
50000us 388284 / - 388284 / - 388284 / - 388284 / - 379460 / 383872 172080 / 39711
75000us 388284 / - 388284 / - 388284 / - 388284 / - 383872 / 388284 247090 / 83834
100000us 388284 / - 388284 / - 388284 / - 388284 / - 383872 / 388284 295625 / 154431
200000us 388284 / - 388284 / - 388284 / - 388284 / - 388284 / - 375047 / 211791
500000us 388284 / - 388284 / - 388284 / - 388284 / - 388284 / - 375047 / 379460
1000000us 388284 / - 388284 / - 388284 / - 388284 / - 388284 / - 383872 / 388284

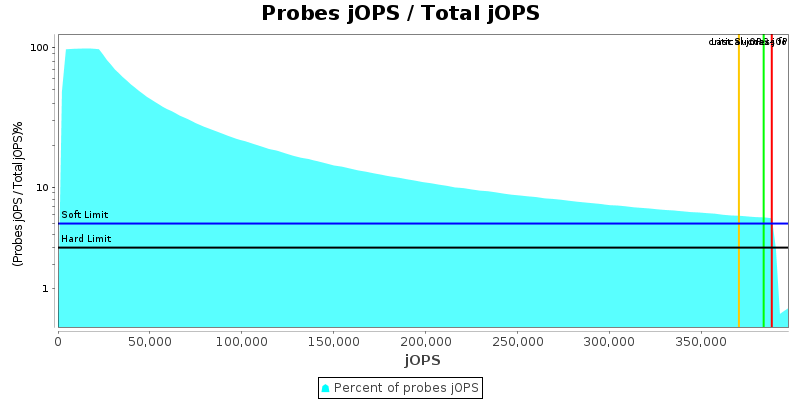

Probes jOPS / Total jOPS

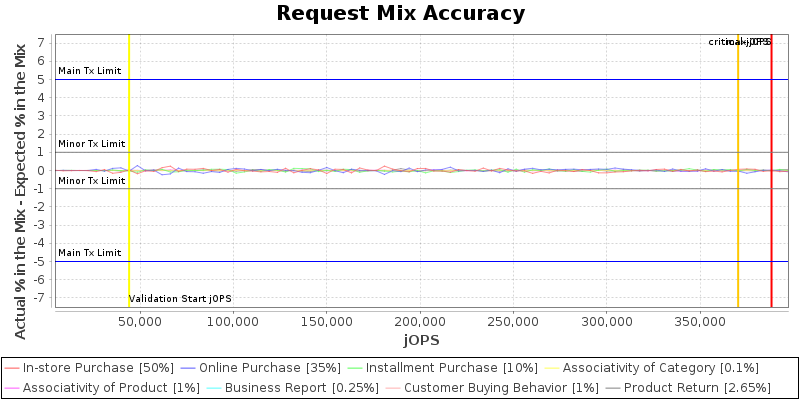

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

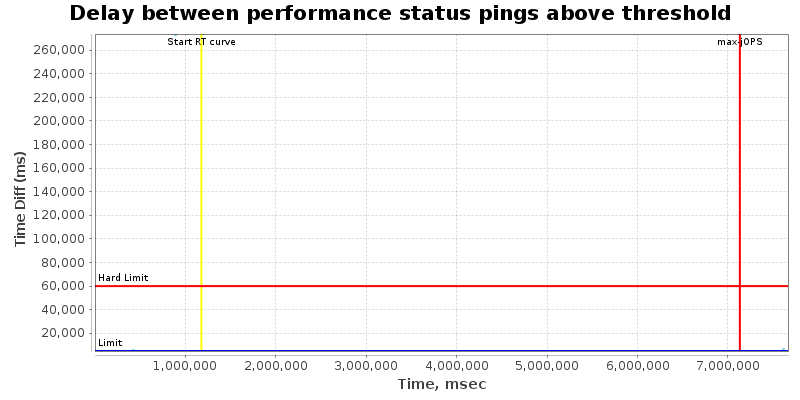

Delay between status pings

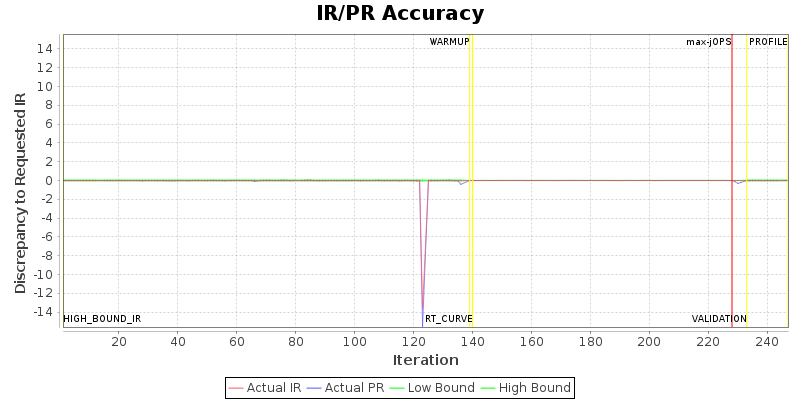

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 1
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.controller.rtcurve.warmup.step 0.1 0.2
specjbb.customerDriver.threads 64 {probe=72, saturate=72}
specjbb.forkjoin.workers 256 {Tier1=111, Tier2=1, Tier3=12}
specjbb.group.count 1 3
specjbb.heartbeat.period 10000 50000
specjbb.heartbeat.threshold 100000 500000
specjbb.mapreducer.pool.size 256 2
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 441232 IR
High-bound (settled) is 427087 IR
