CPU2006 license: | 001176 | Test date: | Dec-2014 |
---|---|---|---|
Test sponsor: | Supermicro | Hardware Availability: | Sep-2014 |
Tested by: | Supermicro | Software Availability: | Sep-2014 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2670 v3 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.10 GHz |
CPU MHz: | 2300 |
FPU: | Integrated |
CPU(s) enabled: | 24 cores, 2 chips, 12 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 30 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 128 GB (8 x 16 GB 2Rx4 PC4-2133P-R) |
Disk Subsystem: | 1 x 450 GB SAS, 10000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 7.0, Kernel 3.10.0-123.el7.x86_64 |
Compiler: | C/C++: Version 15.0.0.090 of Intel C++ Studio XE for Linux |
Auto Parallel: | Yes |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V10.0 |

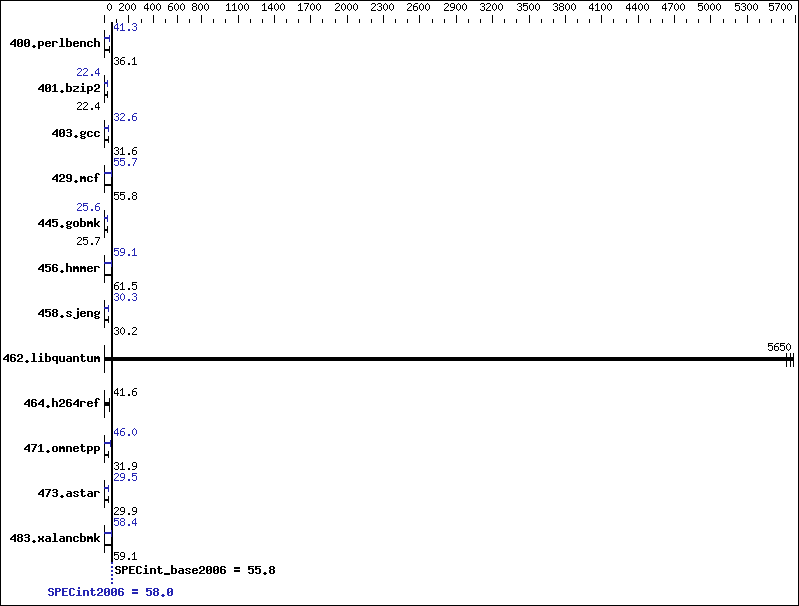

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 273 | 35.8 | 271 | 36.1 | 271 | 36.1 | 236 | 41.3 | 237 | 41.3 | 237 | 41.3 |
401.bzip2 | 431 | 22.4 | 431 | 22.4 | 433 | 22.3 | 430 | 22.4 | 430 | 22.4 | 430 | 22.5 |
403.gcc | 254 | 31.6 | 255 | 31.5 | 254 | 31.7 | 247 | 32.6 | 247 | 32.6 | 247 | 32.6 |
429.mcf | 162 | 56.3 | 163 | 55.8 | 165 | 55.2 | 164 | 55.7 | 164 | 55.7 | 167 | 54.8 |
445.gobmk | 408 | 25.7 | 408 | 25.7 | 409 | 25.7 | 410 | 25.6 | 410 | 25.6 | 409 | 25.6 |
456.hmmer | 152 | 61.6 | 152 | 61.5 | 152 | 61.4 | 158 | 59.0 | 158 | 59.1 | 158 | 59.1 |
458.sjeng | 401 | 30.2 | 401 | 30.1 | 401 | 30.2 | 400 | 30.3 | 399 | 30.3 | 399 | 30.3 |
462.libquantum | 3.69 | 5620 | 3.65 | 5680 | 3.66 | 5650 | 3.69 | 5620 | 3.65 | 5680 | 3.66 | 5650 |
464.h264ref | 532 | 41.6 | 533 | 41.5 | 531 | 41.7 | 532 | 41.6 | 533 | 41.5 | 531 | 41.7 |
471.omnetpp | 196 | 31.9 | 196 | 31.9 | 193 | 32.3 | 134 | 46.5 | 143 | 43.8 | 136 | 46.0 |
473.astar | 234 | 30.0 | 238 | 29.5 | 235 | 29.9 | 238 | 29.5 | 235 | 29.8 | 239 | 29.4 |
483.xalancbmk | 117 | 58.8 | 116 | 59.6 | 117 | 59.1 | 118 | 58.4 | 117 | 58.8 | 118 | 58.4 |
The config file option 'submit' was used.
Stack size set to unlimited using "ulimit -s unlimited"
BIOS Settings: Hyper Threading (All) = Disabled Early Snoop = Disabled Enforce POR = Disabled
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/home/SPEC2K6/SPEC2006-V12/libs/32:/home/SPEC2K6/SPEC2006-V12/libs/64:/home/SPEC2K6/SPEC2006-V12/sh" OMP_NUM_THREADS = "24" Binaries compiled on a system with 1x Core i5-4670K CPU + 16GB memory using RedHat EL 7.0 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
471.omnetpp: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
icc -m64 | |
400.perlbench: | icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
445.gobmk: | icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 | |
473.astar: | icpc -m64 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
429.mcf: | -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -ansi-alias |
458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
462.libquantum: | basepeak = yes |
464.h264ref: | basepeak = yes |
471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
473.astar: | -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
483.xalancbmk: | -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
