SPEC® CINT2006 Result

Supermicro

Supermicro A+ Server 2022TC-HTRF4
(H8DCT-HLN4F, AMD Opteron 4234)

SPECint®_rate2006 = 227

SPECint_rate_base2006 = 202

CPU2006 license:	001176	Test date:	Jan-2012
Test sponsor:	Supermicro	Hardware Availability:	Nov-2011
Tested by:	Supermicro	Software Availability:	Dec-2011

Hardware
CPU Name:	AMD Opteron 4234
CPU Characteristics:	AMD Turbo CORE technology up to 3.50 GHz
CPU MHz:	3100
FPU:	Integrated
CPU(s) enabled:	12 cores, 2 chips, 6 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	192 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core
Secondary Cache:	6 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache:	8 MB I+D on chip per chip
Other Cache:	None
Memory:	32 GB (4 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem:	1 x 500 GB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 6.2, Kernel 2.6.32-220.el6.x86_64
Compiler:	C/C++: Version 4.2.5.2 of x86 Open64 Compiler Suite (from AMD)
Auto Parallel:	No
File System:	ext3
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap 10.0 32-bit Library for Linux

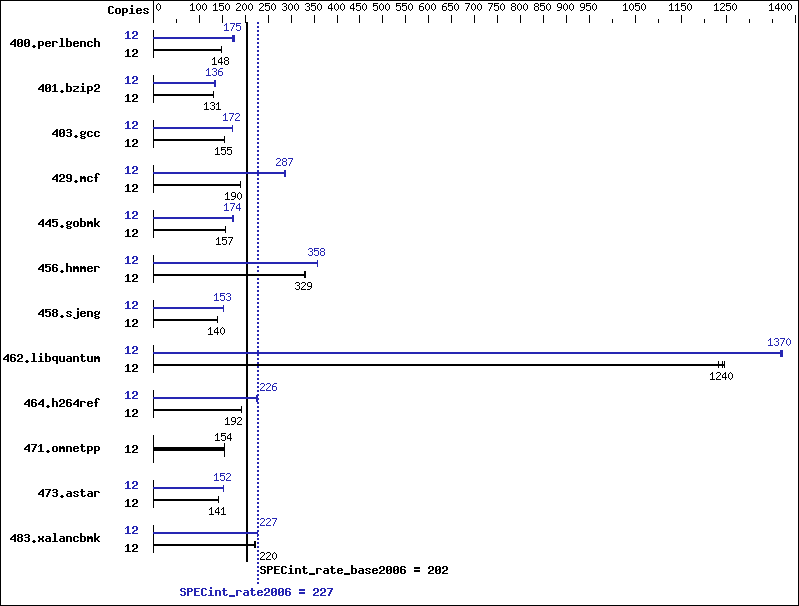

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	12	790	148	791	148	792	148	12	678	173	669	175	668	176
401.bzip2	12	886	131	887	131	887	131	12	868	133	851	136	851	136
403.gcc	12	623	155	620	156	623	155	12	563	171	561	172	562	172
429.mcf	12	577	190	576	190	577	190	12	384	285	382	287	382	287
445.gobmk	12	803	157	803	157	804	157	12	728	173	724	174	724	174
456.hmmer	12	341	328	340	329	338	331	12	313	358	313	358	314	357
458.sjeng	12	1037	140	1039	140	1038	140	12	951	153	950	153	950	153
462.libquantum	12	200	1240	200	1240	202	1230	12	181	1370	182	1370	182	1370
464.h264ref	12	1382	192	1380	192	1378	193	12	1178	226	1176	226	1181	225
471.omnetpp	12	485	155	486	154	486	154	12	485	155	486	154	486	154
473.astar	12	596	141	596	141	596	141	12	553	152	553	152	553	152
483.xalancbmk	12	377	220	376	220	374	221	12	365	227	365	227	366	226

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set transparent_hugepage=never as a boot paramenter in /boot/grub/menu.lst
Set kernel/randomize_va_space=0 in /etc/sysctl.conf

Huge pages were not configured for this run.

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/usr/cpu2006/amd1104-rate-libs-revB/32:/usr/cpu2006/amd1104-rate-libs-revB/64"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6282SE chips + 64GB Memory using RHEL 6.1

Base Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

-march=bdver1 -Ofast -CG:local_sched_alg=1 -INLINE:aggressive=on -IPA:plimit=8000 -IPA:small_pu=100 -HP:bd=2m:heap=2m -mso -LNO:prefetch=2

C++ benchmarks:

-march=bdver1 -Ofast -m32 -INLINE:aggressive=on -CG:cmp_peep=on -D__OPEN64_FAST_SET -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

Peak Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Peak Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:prefetch=2 -LNO:opt=0 -IPA:plimit=20000 -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -OPT:keep_ext=on -WOPT:if_conv=0 -WOPT:sib=on -CG:local_sched_alg=1 -CG:unroll_fb_req=on -CG:movext_icmp=off -HP:bd=2m:heap=2m
401.bzip2:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:prefetch=2 -LNO:pf2=0 -OPT:alias=disjoint -OPT:goto=off -CG:local_sched_alg=1 -HP:bdt=2m:heap=2m
403.gcc:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:trip_count=256 -CG:cmp_peep=on -CG:pre_minreg_level=2 -m32 -HP:bdt=2m:heap=2m -GRA:unspill=on -IPA:small_pu=200 -WOPT:sib=on
429.mcf:	-march=bdver1 -O3 -OPT:unroll_times_max=5 -ipa -INLINE:aggressive=on -CG:gcm=off -GRA:prioritize_by_density=on -m32 -HP:bdt=2m:heap=2m -mso
445.gobmk:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:unroll_size=256 -OPT:unroll_times_max=8 -OPT:keep_ext=on -IPA:plimit=750 -IPA:min_hotness=300 -IPA:pu_reorder=1 -LNO:ignore_feedback=off -WOPT:if_conv=2 -HP:bd=2m:heap=2m
456.hmmer:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:prefetch=2 -OPT:alias=disjoint -OPT:unroll_times_max=16 -OPT:unroll_size=512 -OPT:unroll_level=2 -OPT:keep_ext=on -CG:cflow=0 -CG:cmp_peep=on -CG:pre_local_sched=off -HP:bdt=2m:heap=2m
458.sjeng:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -CG:ptr_load_use=0 -CG:divrem_opt=on -CG:movext_icmp=off -CG:locs_best=on -LNO:full_unroll=10 -IPA:pu_reorder=2 -HP:bd=2m:heap=2m -WOPT:sib=on
462.libquantum:	-march=bdver1 -Ofast -mso -OPT:unroll_size=512 -OPT:unroll_times_max=16 -LNO:prefetch=2 -LNO:prefetch_ahead=4 -LNO:pf2=0 -CG:local_sched_alg=1 -INLINE:aggressive=on -IPA:plimit=15000 -IPA:small_pu=100 -HP:bdt=2m:heap=2m,limit=300
464.h264ref:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:unroll_size=256 -OPT:unroll_times_max=2 -IPA:plimit=20000 -OPT:alias=disjoint -CG:ptr_load_use=0 -CG:local_sched_alg=1 -HP:bdt=2m:heap=2m

C++ benchmarks:

471.omnetpp:	basepeak = yes
473.astar:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -TENV:frame_pointer=off -WOPT:if_conv=0 -WOPT:sib=on -CG:divrem_opt=on -GRA:optimize_boundary=on -OPT:alias=disjoint -INLINE:aggressive=on -IPA:small_pu=3000 -IPA:plimit=3000 -m32 -HP:bdt=2m:heap=2m
483.xalancbmk:	-march=bdver1 -Ofast -LNO:prefetch=2 -OPT:unroll_size=512 -OPT:unroll_times_max=8 -D__OPEN64_FAST_SET -INLINE:aggressive=on -m32 -CG:cmp_peep=on -CG:local_sched=off -GRA:unspill=on -TENV:frame_pointer=off -fno-emit-exceptions -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd-platform-rate-revB.20120103.html,
http://www.spec.org/cpu2006/flags/x86-open64-425-flags-rate-revB.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/amd-platform-rate-revB.20120103.xml,
http://www.spec.org/cpu2006/flags/x86-open64-425-flags-rate-revB.xml.
